C7085-90921 Chapter 4 Printer maintenance 93

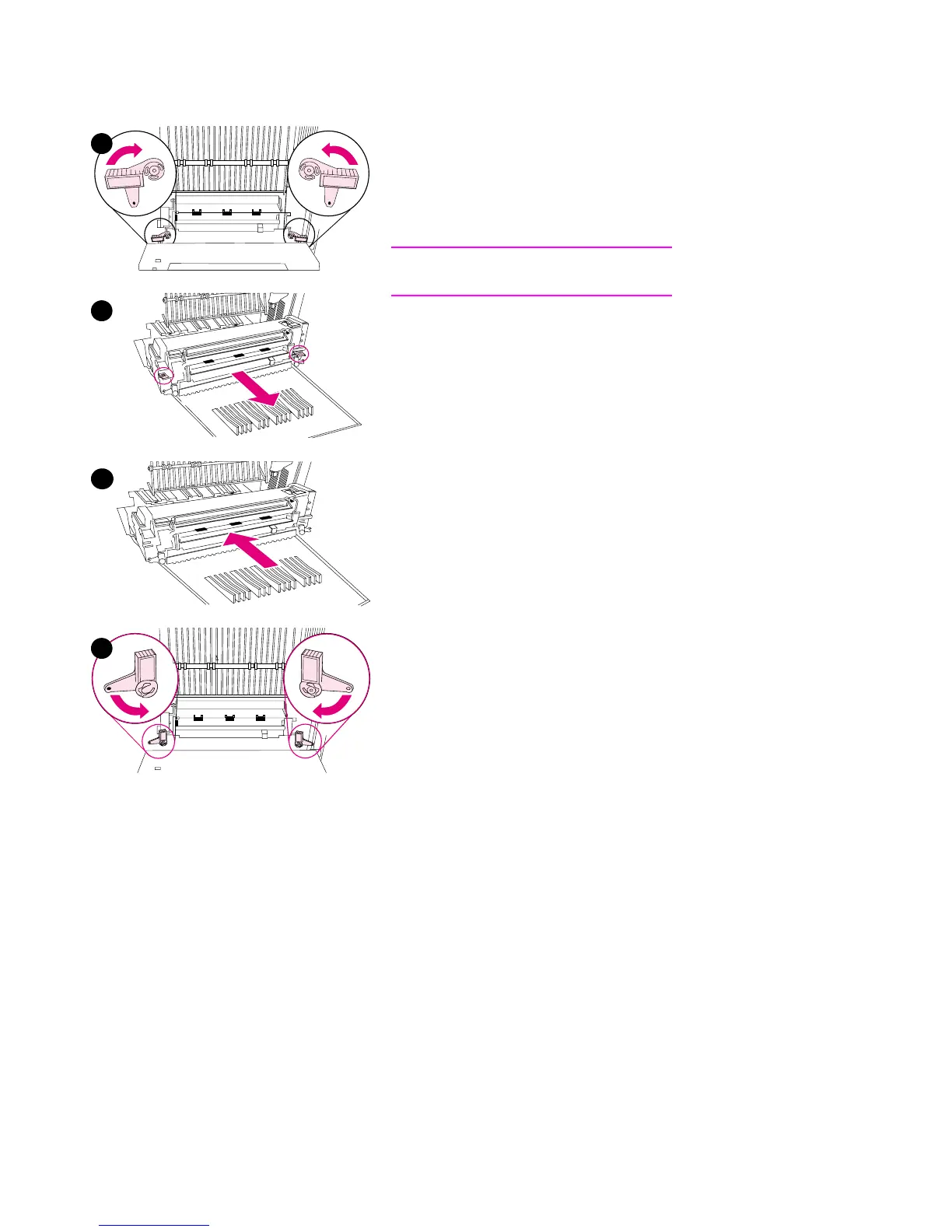

5 Rotate the two blue latches upward 90 degrees.
6 Grasp the finger holds on the fuser and pull the used fuser out of the
printer.
7 Remove the new fuser from the bag using the finger holds. Holding
the new fuser by the finger holds, slide the fuser into the printer.
CAUTION
The blue latches will lock only if the fuser is installed.
8 Lock the fuser in place by rotating the two blue latches down.
Reconnect the support straps to the upper rear door.
6
5
7
8
