Control panel (base model)
CAUTION: Some parts are sensitive to electrostatic discharge (ESD). Look for the ESD
reminder when removing product parts. Always perform service work at an ESD-protected workstation
or mat. If an ESD workstation or mat is not available, ground yourself by touching the sheet-metal chassis
before touching an ESD-sensitive part.
1. Remove the control-panel overlay. See Control-panel overlay (base model) on page 112.
2. Remove one screw (callout 1).

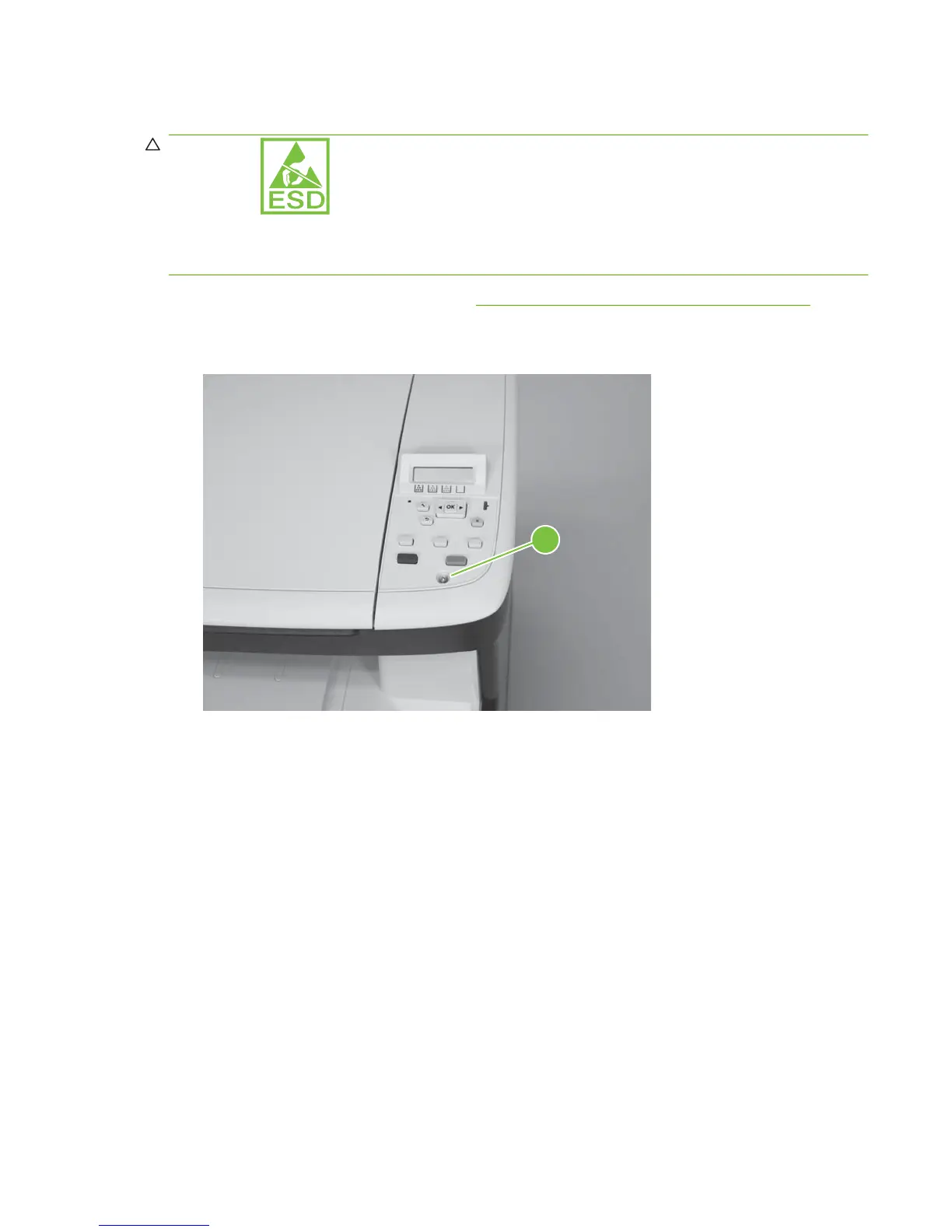

Figure 6-5 Remove the control-panel (1 of 3; base model)
1
