7. Disconnect two wire-harness connectors (callout 10; J102 and J103).

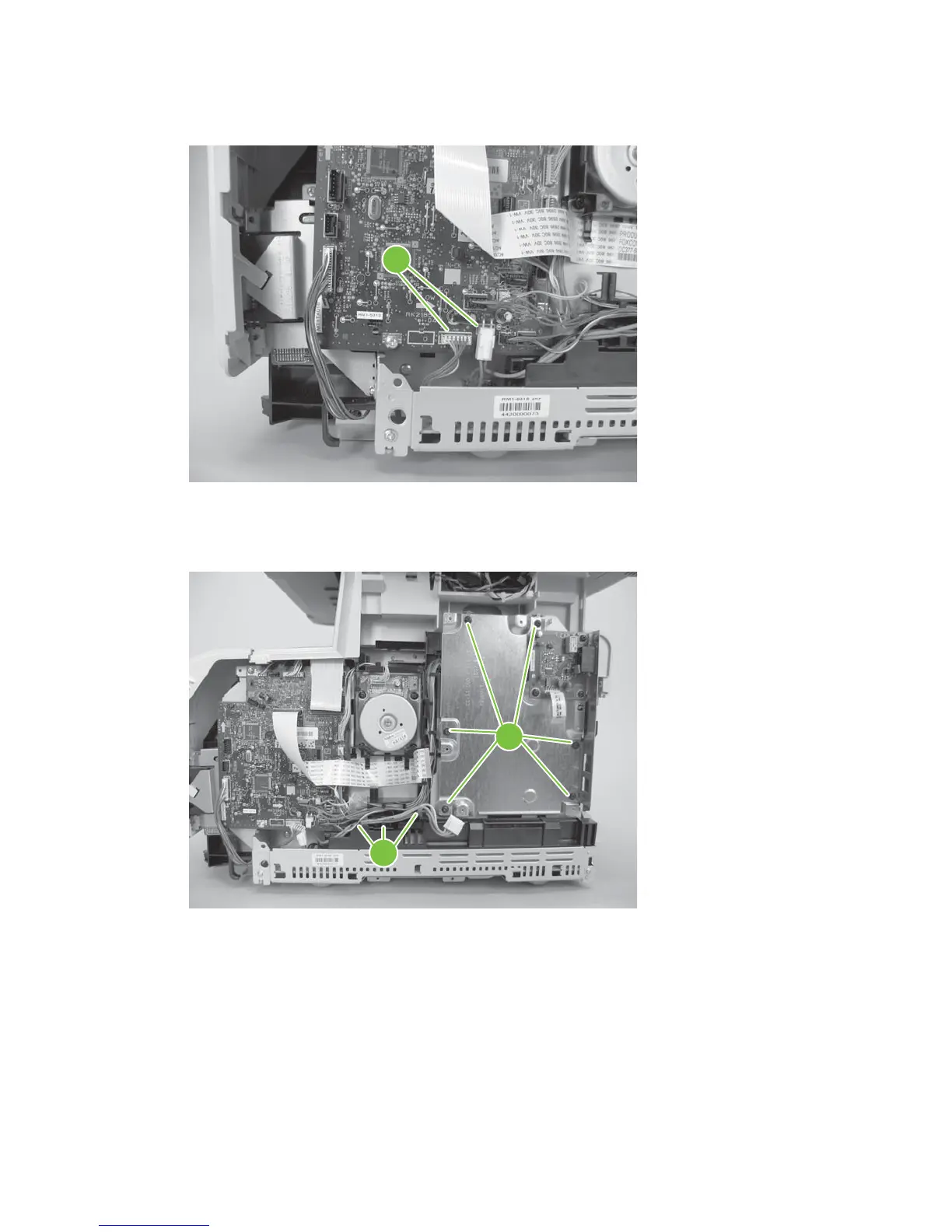

Figure 6-106 Remove the power supply (low voltage; 6 of 12)
10
8. Release the wire harness (callout 11) from the retainer, and then remove six screws (callout 12);
four screws for the base model) and remove the sheet-metal plate.
Figure 6-107 Remove the power supply (low voltage; 7 of 12)
12
11
176 Chapter 6 Removal and replacement ENWW
