7. Release the wire harness (callout 10) from the retainer.

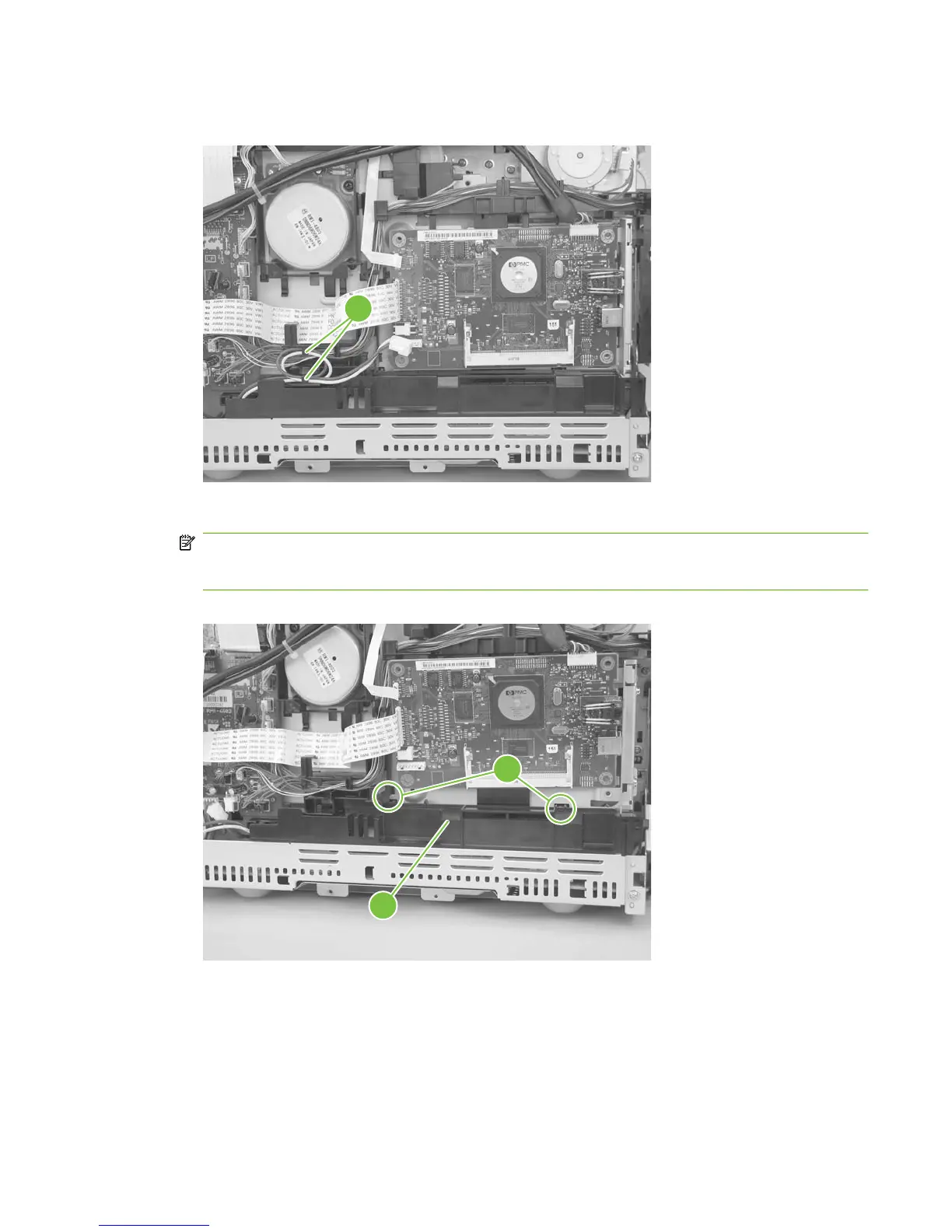

Figure 6-75 Remove the power supply (low-voltage; 6 of 10)
10
8. Release two tabs (callout 11), and then carefully remove the retainer (callout 12).
NOTE: For the HP Color LaserJet CP1510 Series Printer, it might be easier to remove this
retainer if you first move the cable that connects the memory-card reader and the formatter PCA
out of the way, and hold the formatter PCA out and away from the chassis.
Figure 6-76 Remove the power supply (low-voltage; 7 of 10)
11
12
ENWW Internal assemblies 143
