Color-misregistration sensor assembly PCA
1. Remove the following components:
●
Right cover. See
Right cover on page 108.
●
Upper-cover assembly. See
Upper-cover assembly on page 121.
●
Left cover. See
Left cover on page 126.
●
Rear door (simplex products). See
Rear door (simplex product) on page 104.
●
Rear cover (simplex products). See
Rear cover and feed guide (simplex product)
on page 112.
●
Rear-lower cover (duplex products). See
Rear-upper cover (duplex product) on page 111.
●
High-voltage power-supply PCA. See
High-voltage power-supply PCA on page 129.
2. Disconnect one connector (callout 1), and then release the wire harness from the guide (callout 2).

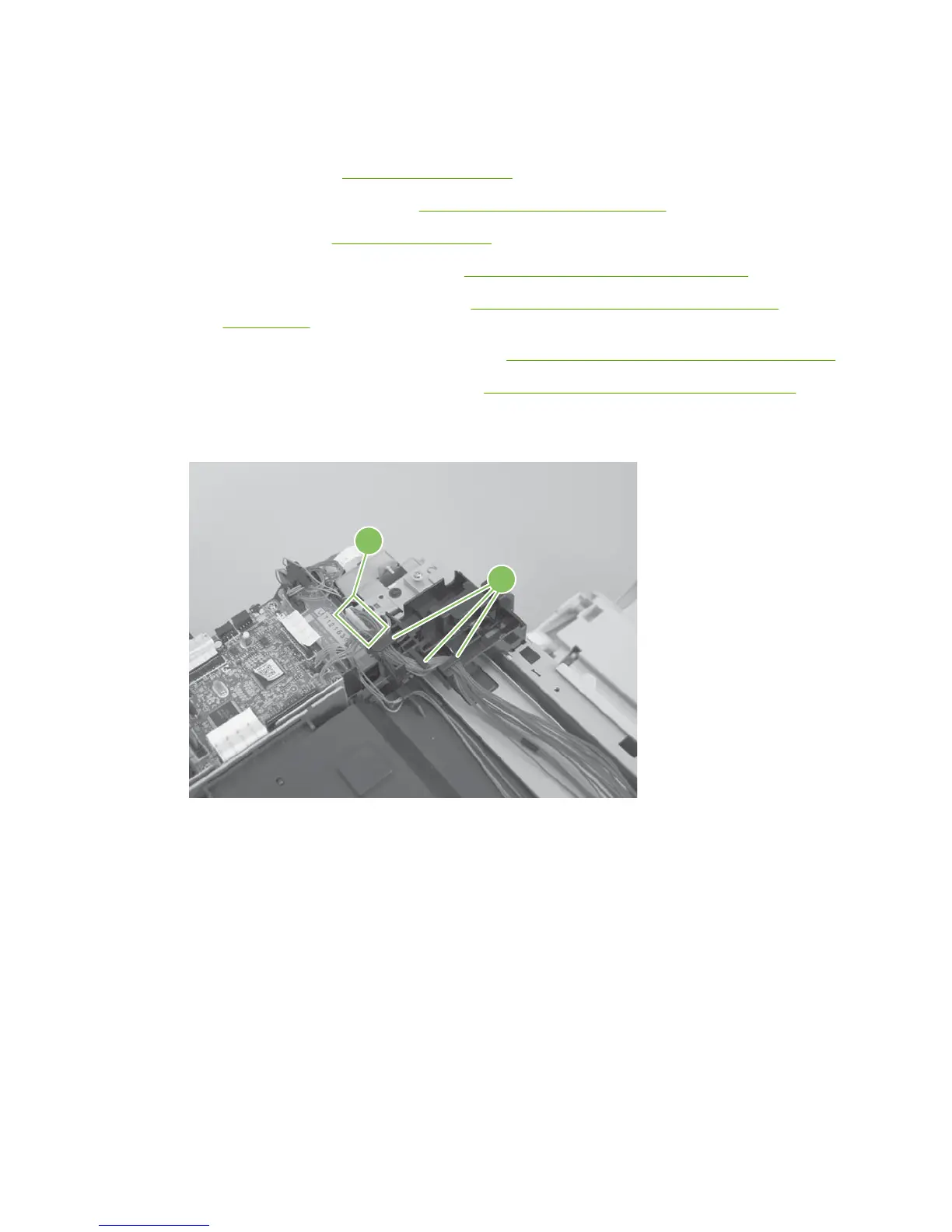

Figure 6-82 Remove the color-misregistration sensor assembly PCA (1 of 5)
1
2
