8. Carefully push the panel slightly toward the front of the product to release it.

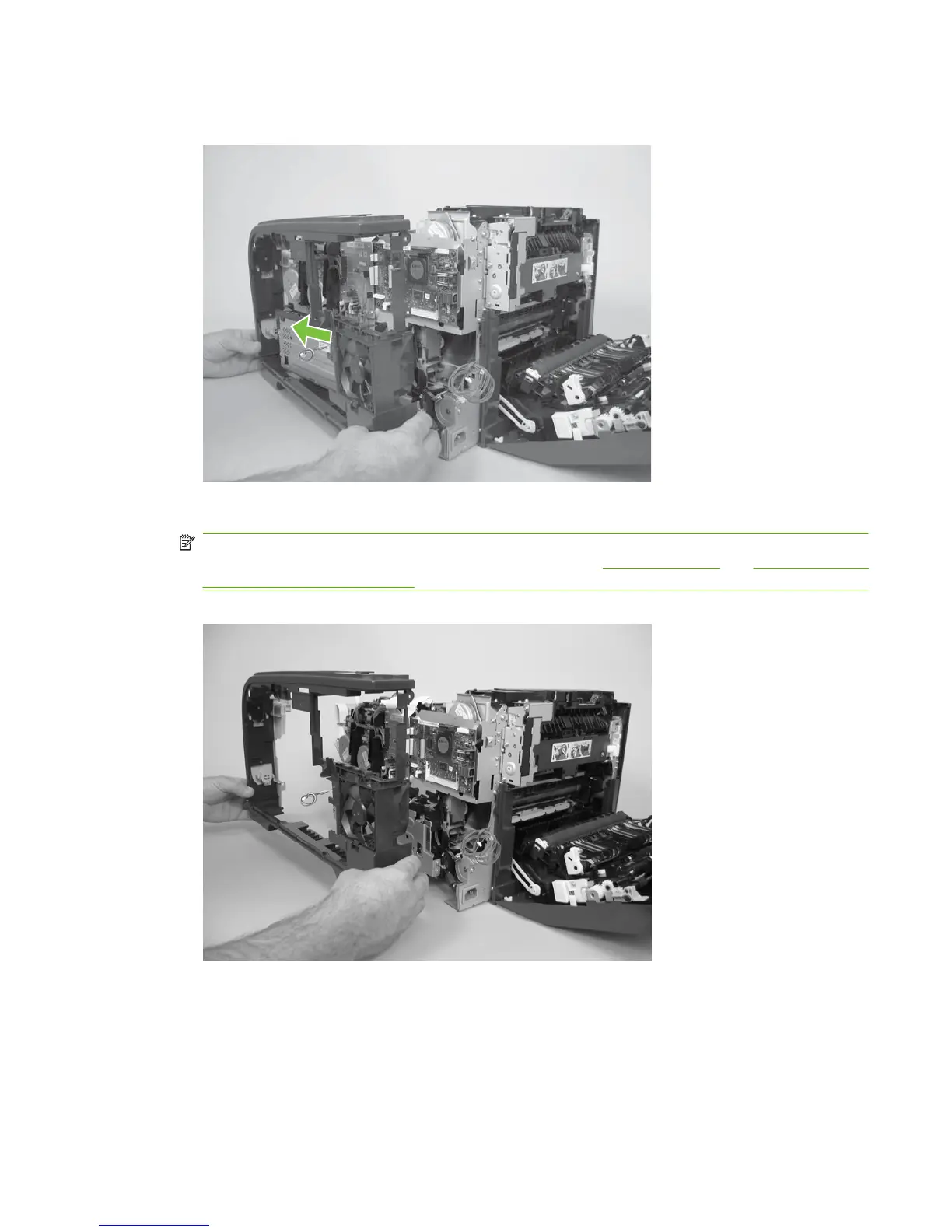

Figure 6-95 Remove the right panel (7 of 8)
9. Remove the right panel.
NOTE: If you are replacing the right panel, you must remove the fan and the right-front cover (the
cover includes the power button) from the right panel. See
Fan on page 146 and Right-front cover
and power button on page 148.
Figure 6-96 Remove the right panel (8 of 8)
ENWW Components and major assemblies 139
