DC controller PCA

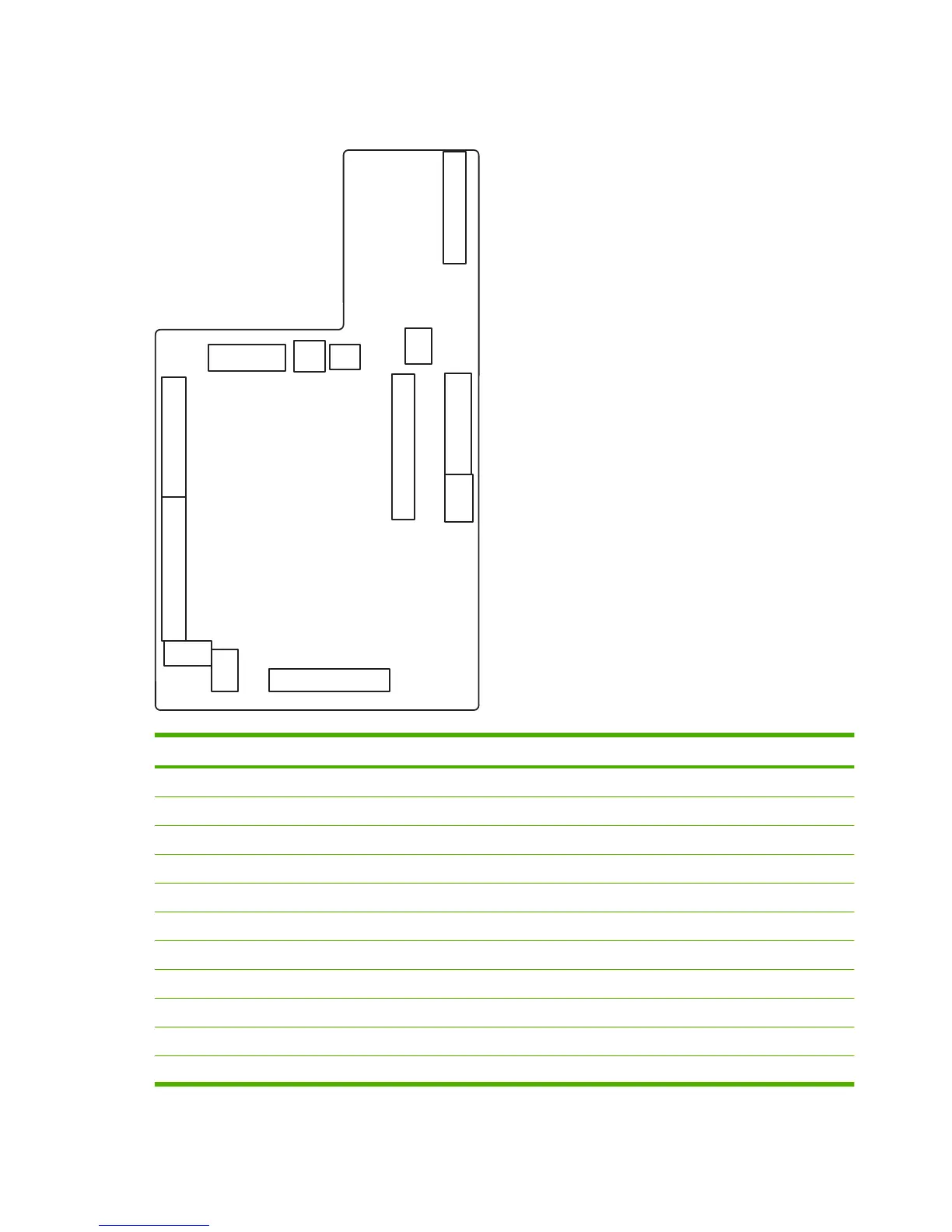

Figure 7-1 DC controller connectors
J141
J132
J153
J133 J131
J150 J154
J157
J156
J130
J140
J151J152
Table 7-2 DC controller connectors
Item Description
J130 Formatter
J131 Laser-driver PCA
J132 Scanner motor (M7)
J133 High-voltage power supply
J140 Motor-driver PCA
J141 Relay PCA
J150 Fuser
J151 Low-voltage and fuser power supply
J152 Duplex driver PCA (duplex models only)
J153 Environmental sensor
J154 Developing disengagement solenoid
188 Chapter 7 Problem solve ENWW
