5. The ITB motor rotates the ITB.
6. The toner image on the ITB is transferred onto the paper, and the paper is fed to the fuser.
The DC controller notifies the formatter of a paper size mismatch error when the paper length detected by
the TOP sensor does not match the paper size specified by the formatter.

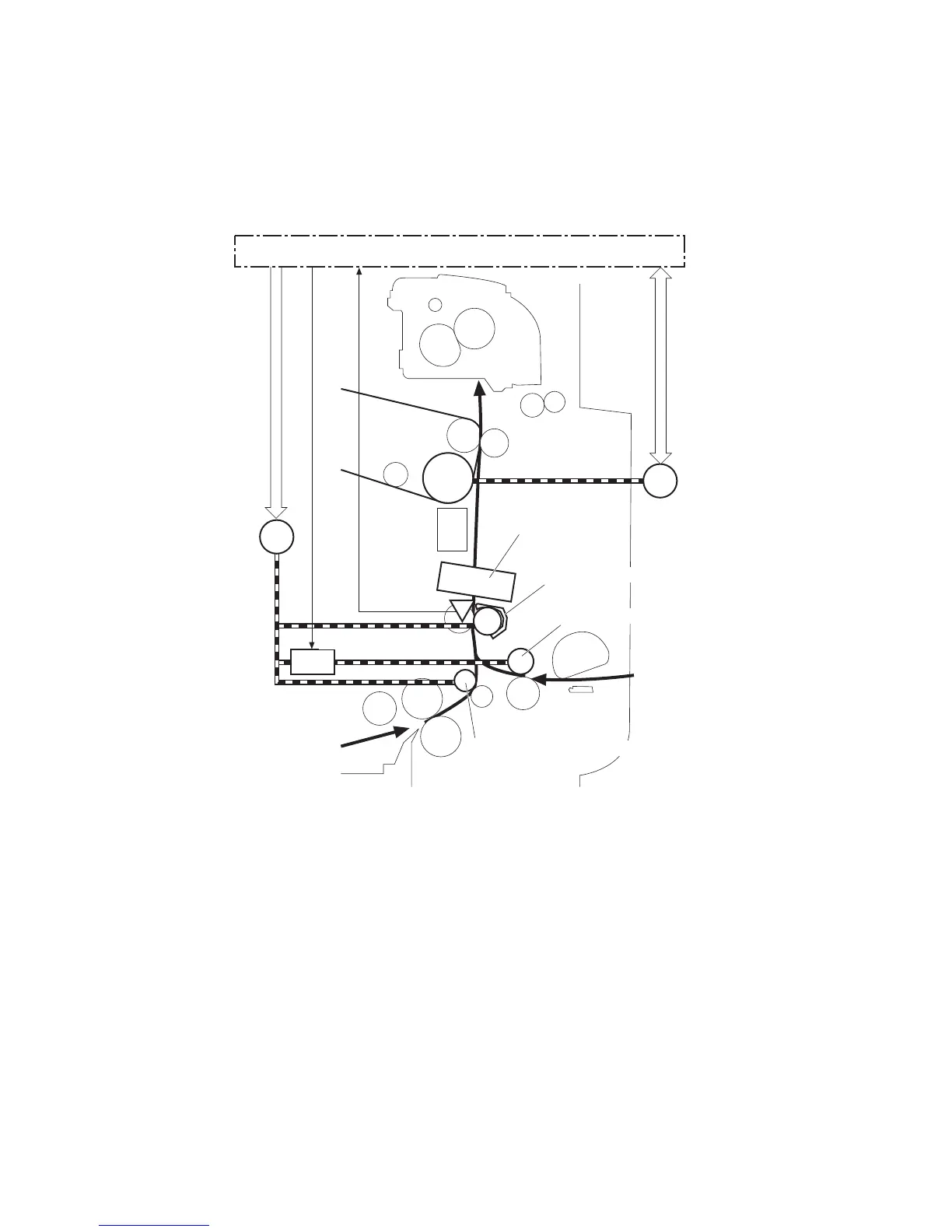

Figure 1-40 Paper-feed mechanism
TOP sensor
Registration shutter
Pickup motor
SR20
Media sensor
M13
CL1
M1
ITB motor
ITB
Registration front feed roller
Duplex re-pickup roller
Duplex re-pickup clutch
DC controller
ENWW Pickup, feed, and delivery system 53
