Recycling 11 – 4

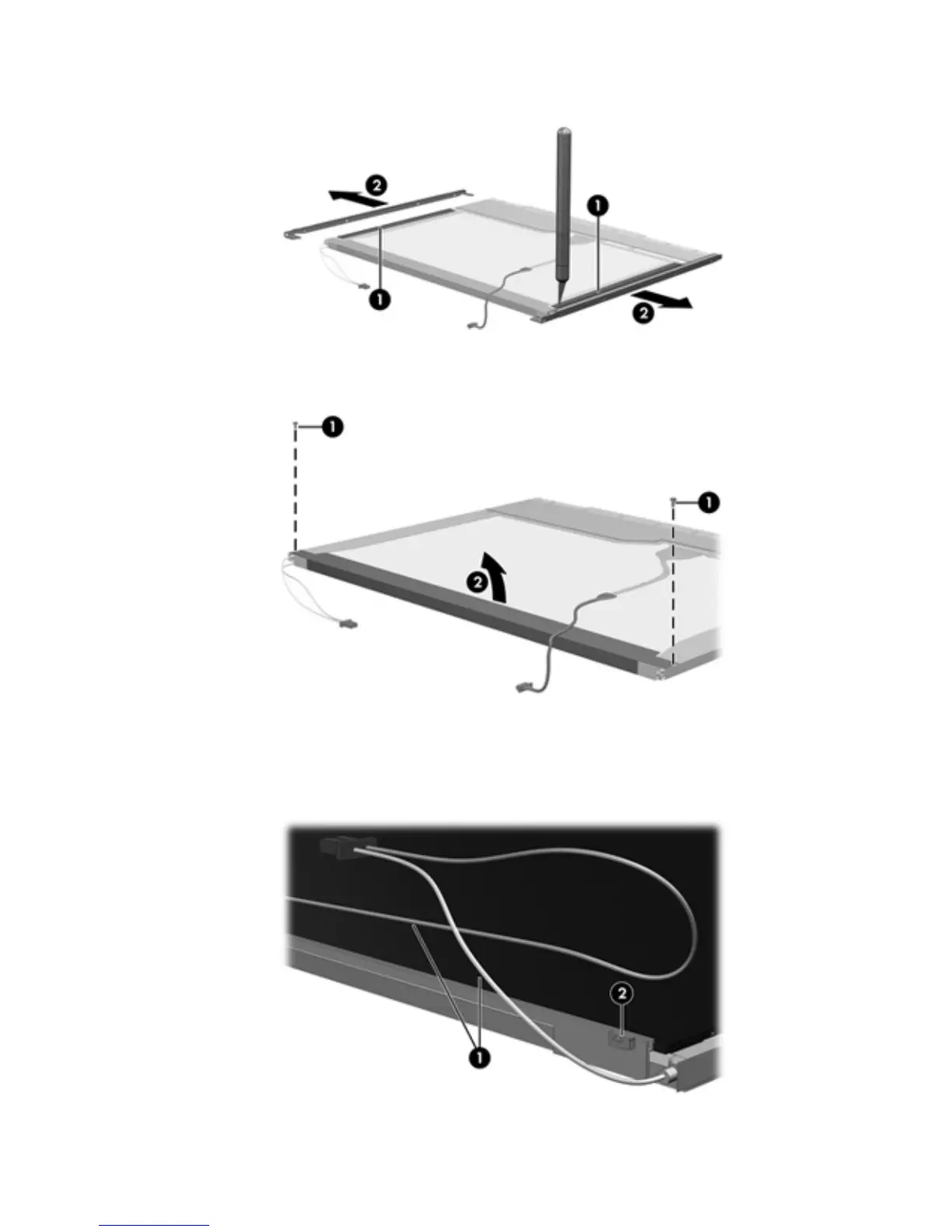

9. Use a sharp-edged tool to cut the tape 1 that secures the sides of the display panel to the display panel frame.
10. Remove the display panel frame 2 from the display panel.
11. Remove the screws 1 that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover 2 and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
15. Remove the backlight cables 1 from the clip 2 in the display panel.
