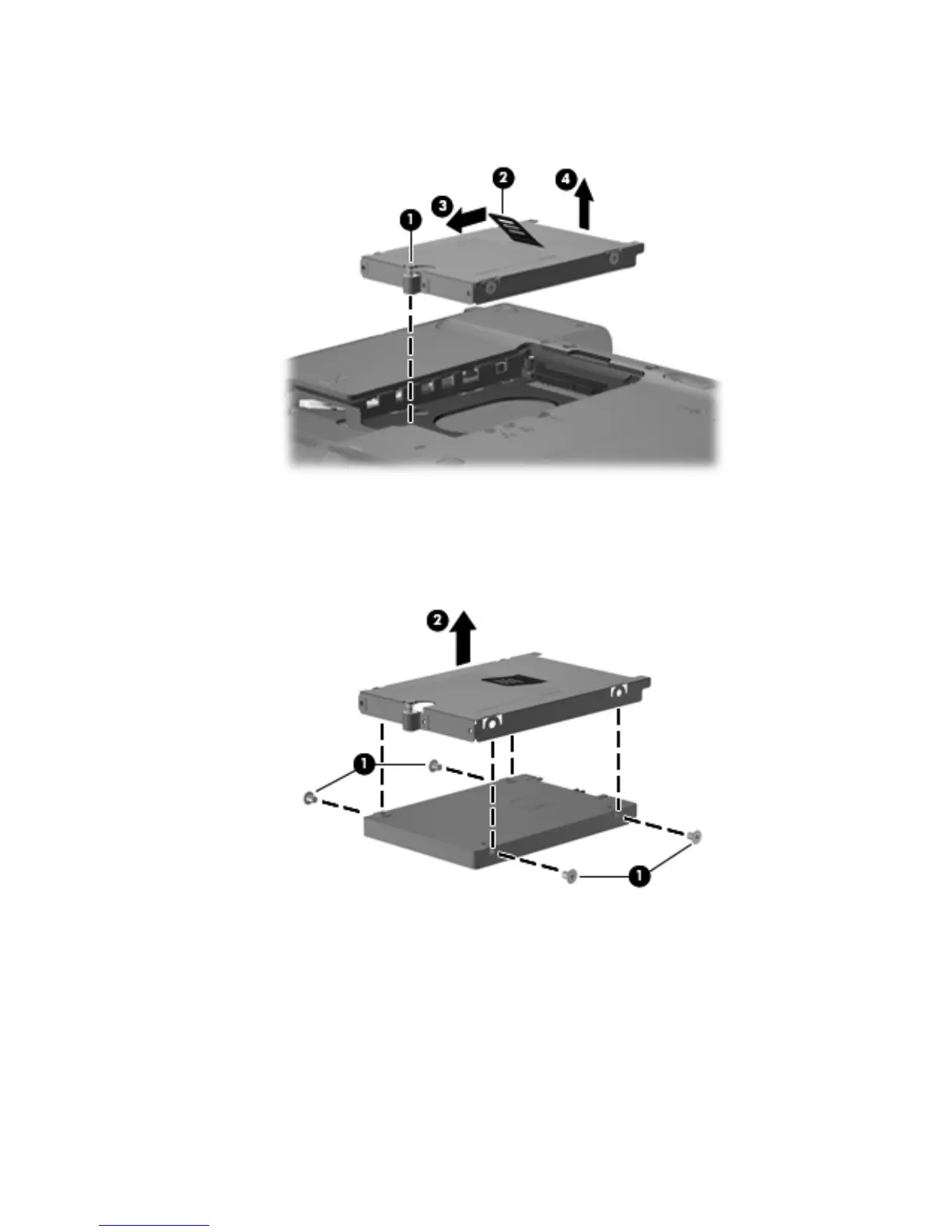

4. Loosen the Phillips PM2.5×10.0 captive screw 1 that secures the hard drive to the computer.
5. Grasp the Mylar tab 2 on the hard drive and slide the hard drive 3 away from the hard drive connector.
6. Remove the hard drive 4 from the hard drive bay.
7. If it is necessary to replace the hard drive bracket
a. Remove the two Phillips PM3.0×3.0 hard drive bracket screws 1 from each side of the hard drive.
b. Lift the bracket 2 straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.

HP Compaq 2230s Specifications

General

Processor model	-
Processor family	Intel® Celeron® M
Processor manufacturer	Intel
HDD speed	5400 RPM
HDD interface	SATA
Card reader integrated	No
Total storage capacity	120 GB
Display surface	Gloss
Display diagonal	12.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Internal memory	4 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Type	PC
Modem speed	56 Kbit/s
Internal modem	Yes
Wireless technology	802.11a/b/g/n draft 2.0
Bluetooth version	2.0+EDR
Networking features	Marvell Ethernet (10/100/1000 NIC)
Operating system installed	Windows Vista Business
Number of battery cells	4
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
AC adapter power	65 W
Battery performance	37 W
Pointing device	Touchpad + Scroll zone
Country of origin	China

Weight and Dimensions

Depth	294 mm
Height	226 mm
Weight	1850 g
Height (front)	28 mm
