Removal and replacement procedures 4–11
✎
The top memory module slot is for extension memory and the bottom slot is for primary memory.

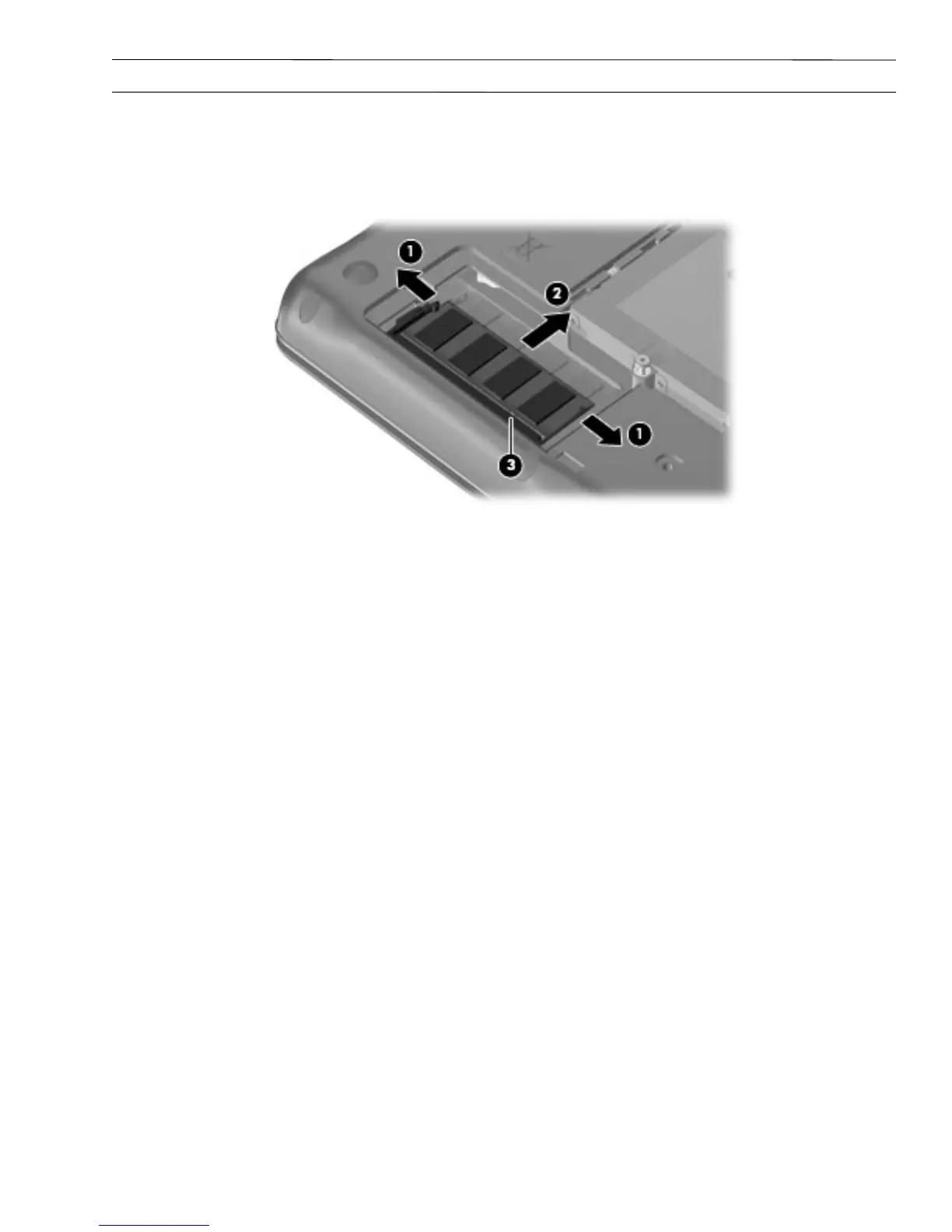

4. Spread the retaining tabs 1 on each side of the memory module to release the memory module. (The edge of
the module opposite the slot rises away from the computer.)
5. Remove the memory module 2 by pulling the module away from the slot at an angle.
✎
Memory modules are designed with a notch 3 to prevent incorrect insertion into the memory module slot.
Reverse this procedure to install a memory module.
