HP Compaq 2230s User Manual

Removal and replacement procedures 4–15

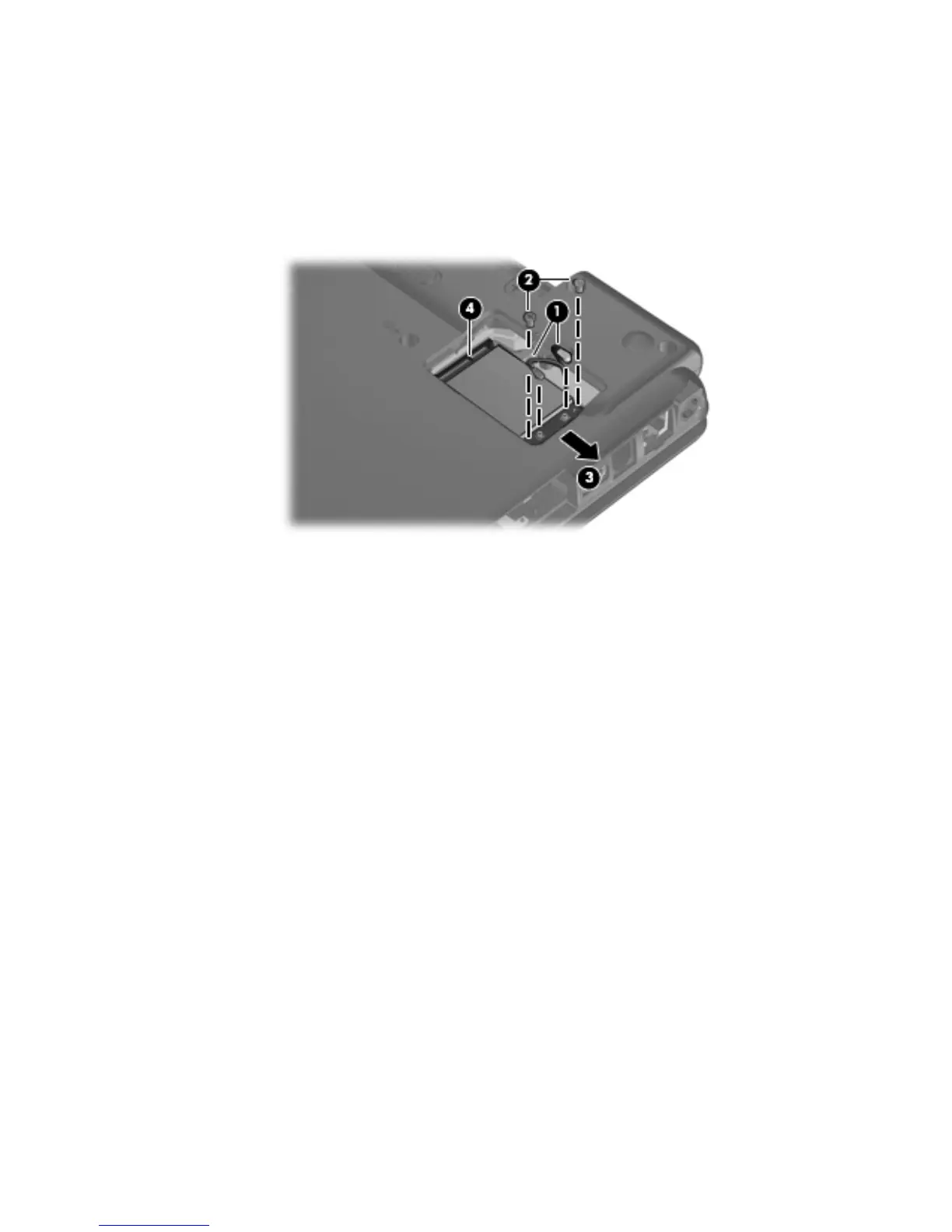

4. Disconnect the WLAN antenna cables 1 from the terminals on the WLAN module.
✎
The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The white WLAN antenna
cable is connected to the WLAN module “Aux” terminal.
5. Remove the two Phillips PM2.5×4.0 screws 2 that secure the WLAN module to the computer. (The edge of the
module opposite the slot rises away from the computer.)
6. Remove the WLAN module 3 by pulling the module away from the slot at an angle.
✎
WLAN modules are designed with a notch 4 to prevent incorrect insertion.
Reverse this procedure to install the WLAN module.

HP Compaq 2230s Specifications

General

Processor model	-
Processor family	Intel® Celeron® M
Processor manufacturer	Intel
HDD speed	5400 RPM
HDD interface	SATA
Card reader integrated	No
Total storage capacity	120 GB
Display surface	Gloss
Display diagonal	12.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Internal memory	4 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Type	PC
Modem speed	56 Kbit/s
Internal modem	Yes
Wireless technology	802.11a/b/g/n draft 2.0
Bluetooth version	2.0+EDR
Networking features	Marvell Ethernet (10/100/1000 NIC)
Operating system installed	Windows Vista Business
Number of battery cells	4
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
AC adapter power	65 W
Battery performance	37 W
Pointing device	Touchpad + Scroll zone
Country of origin	China

Weight and Dimensions

Depth	294 mm
Height	226 mm
Weight	1850 g
Height (front)	28 mm
