HP Compaq 2230s

Removal and replacement procedures 4–24

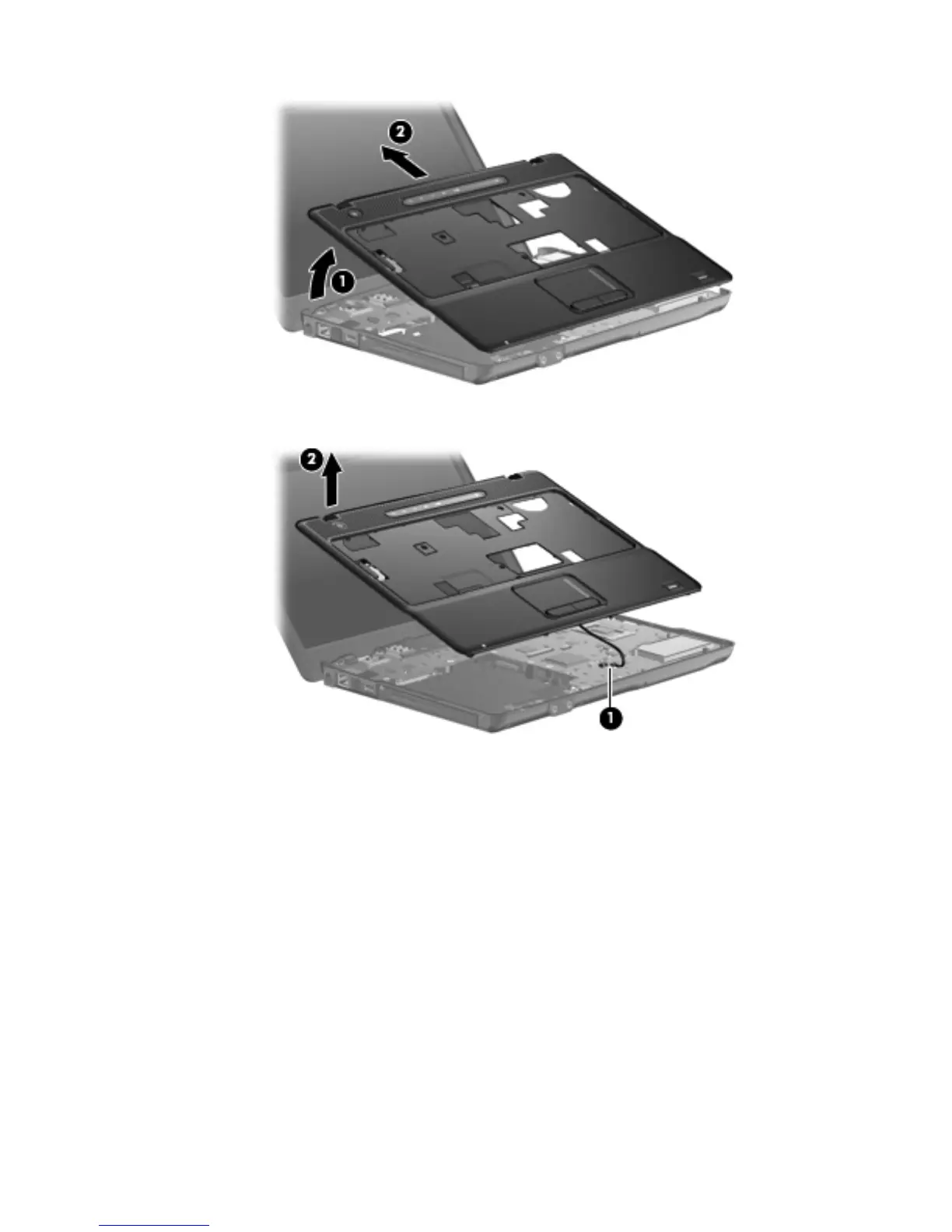

10. Lift the rear edge and sides of the top cover 1 to release it. Move the top cover backward 2 and hold it.
11. Disconnect the fingerprint reader cable 1 and remove the top cover 2.
Reverse this procedure to install the top cover.
