HP Compaq 2230s User Manual

Removal and replacement procedures 4–35

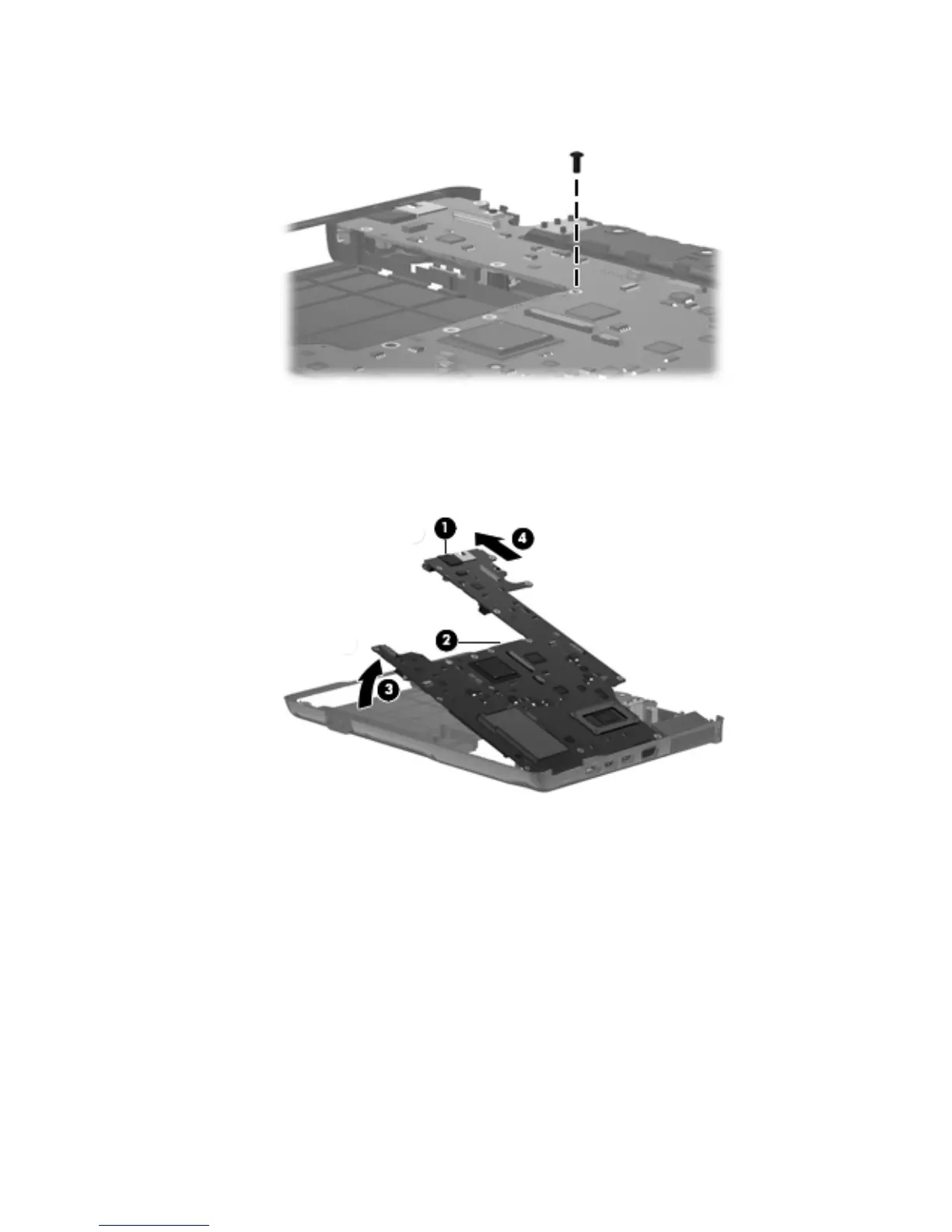

Remove the system board:
1. Remove the Torx T8M2.5×6.0 slotted screw that secures the system board to the base enclosure. The screw is
located by the optical drive connector,
2. Flex the left side of the base enclosure until the USB, RJ-45, and RJ-11 jacks 1 clear the openings in the base
enclosure.
3. Use the optical drive connector 2 to lift the left side of the system board 3 until it rests at an angle.
4. Remove the system board from the base enclosure by pulling it away at an angle 4.
Reverse this procedure to install the system board.

HP Compaq 2230s Specifications

General

Processor model	-
Processor family	Intel® Celeron® M
Processor manufacturer	Intel
HDD speed	5400 RPM
HDD interface	SATA
Card reader integrated	No
Total storage capacity	120 GB
Display surface	Gloss
Display diagonal	12.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Internal memory	4 GB
Memory clock speed	800 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Type	PC
Modem speed	56 Kbit/s
Internal modem	Yes
Wireless technology	802.11a/b/g/n draft 2.0
Bluetooth version	2.0+EDR
Networking features	Marvell Ethernet (10/100/1000 NIC)
Operating system installed	Windows Vista Business
Number of battery cells	4
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
AC adapter power	65 W
Battery performance	37 W
Pointing device	Touchpad + Scroll zone
Country of origin	China

Weight and Dimensions

Depth	294 mm
Height	226 mm
Weight	1850 g
Height (front)	28 mm
