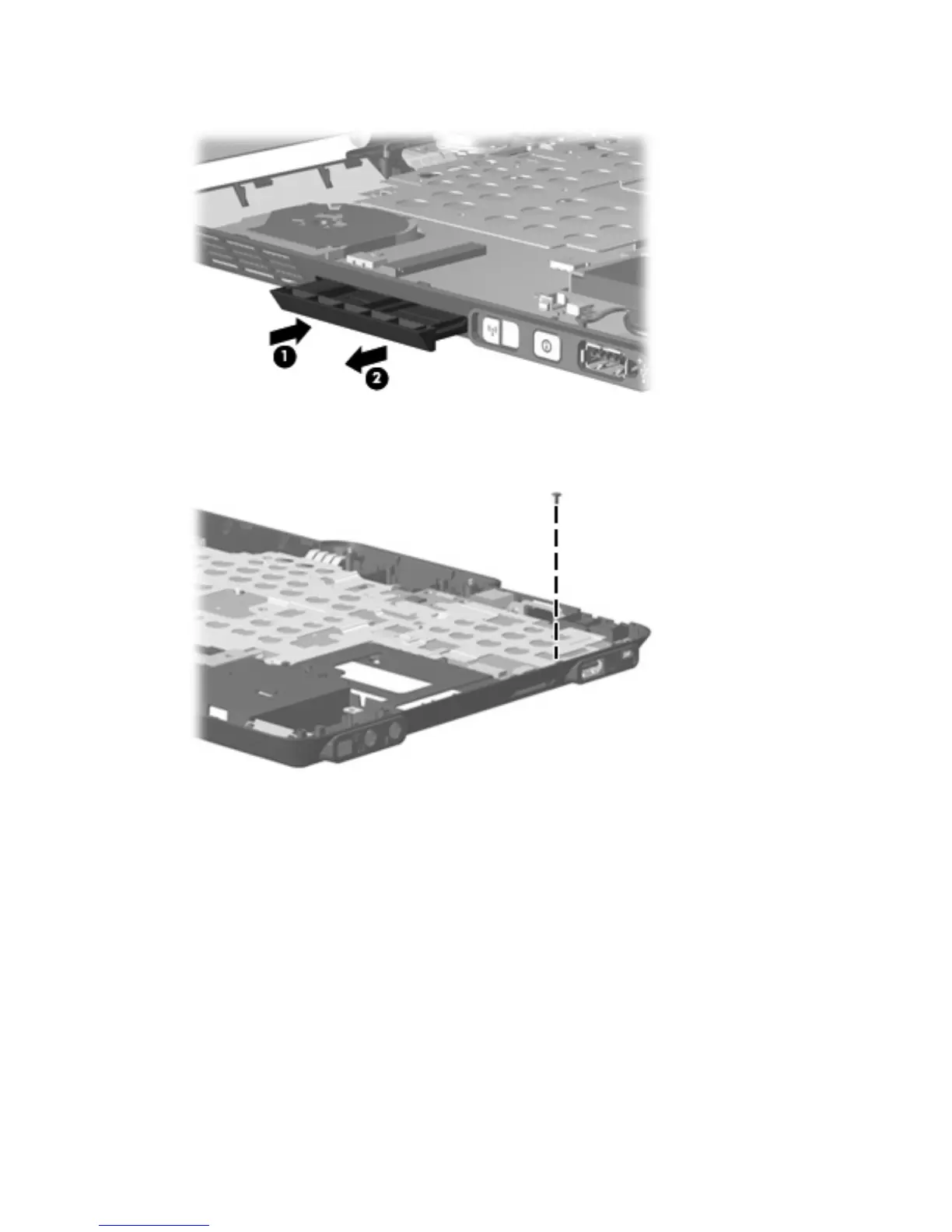

3. Remove the ExpressCard slot bezel (2).
4.
Position the computer with the front toward you.
5.
Remove the Phillips PM2.0×5.0 screw that secures the system board to the base enclosure.
6.
Position the computer with the rear panel toward you.
7. Use the optical drive connector (1) to lift the front edge of the system board (2) until it rests at an
angle.
64 Chapter 4 Removal and replacement procedures
