Speaker
The spare part number for the speaker used in all models is 605792-001.
Before removing the speaker, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 56).
5. Remove the service door (see
Service door on page 56).
6. Remove the palm rest (see
Palm rest on page 73).
7. Remove the keyboard (see
Keyboard on page 78).
8.
Remove the top cover (see
Top cover on page 82).

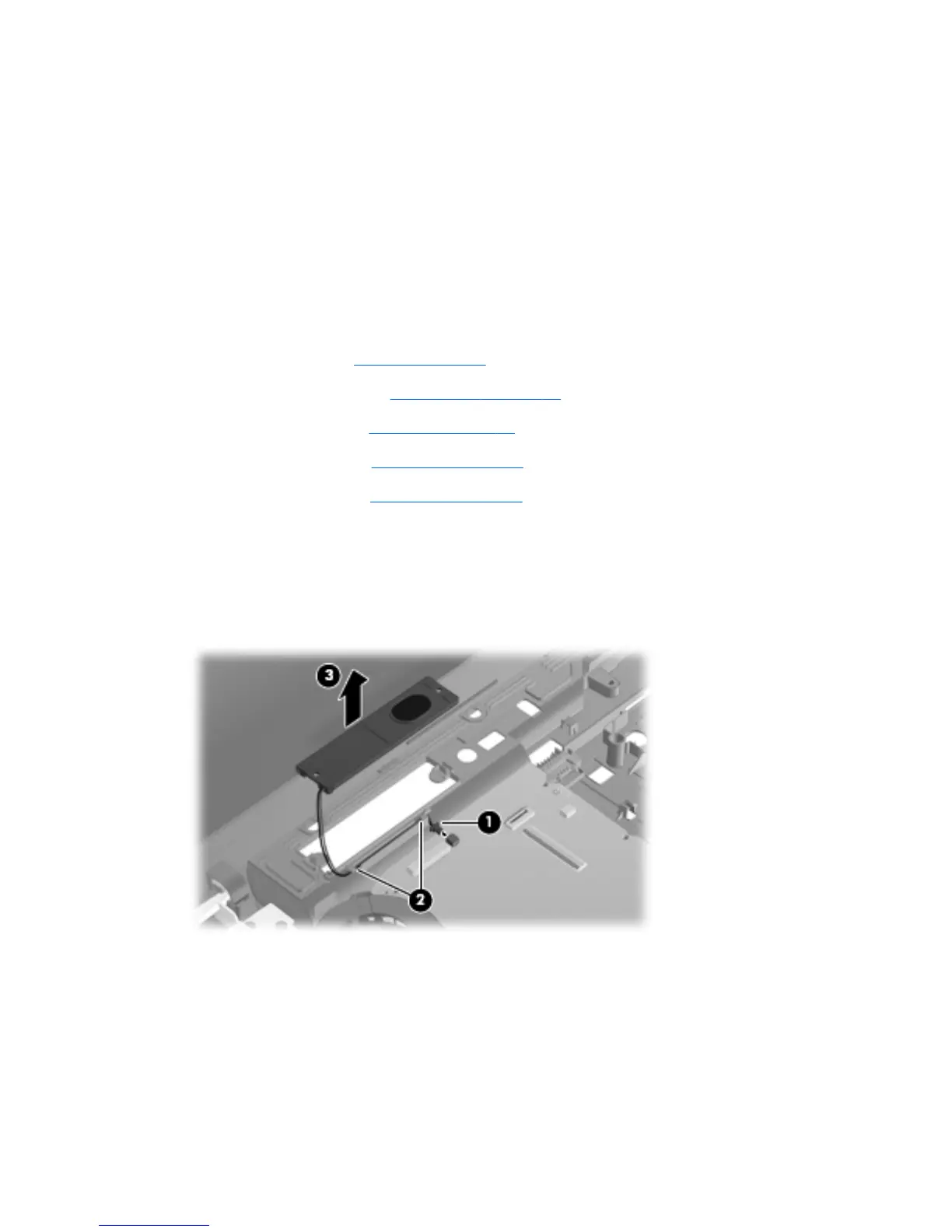

Remove the speaker:
1.
Disconnect the speaker cable from the connector (1) on the system board.
2. Release the cable from the cable retainers (2) then, push up on the speaker from the back (3) to
remove it from the base enclosure.
Reverse this procedure to install the speaker.
92 Chapter 4 Removal and replacement procedures
