4.
Remove the hard drive (4) from the hard drive bay.

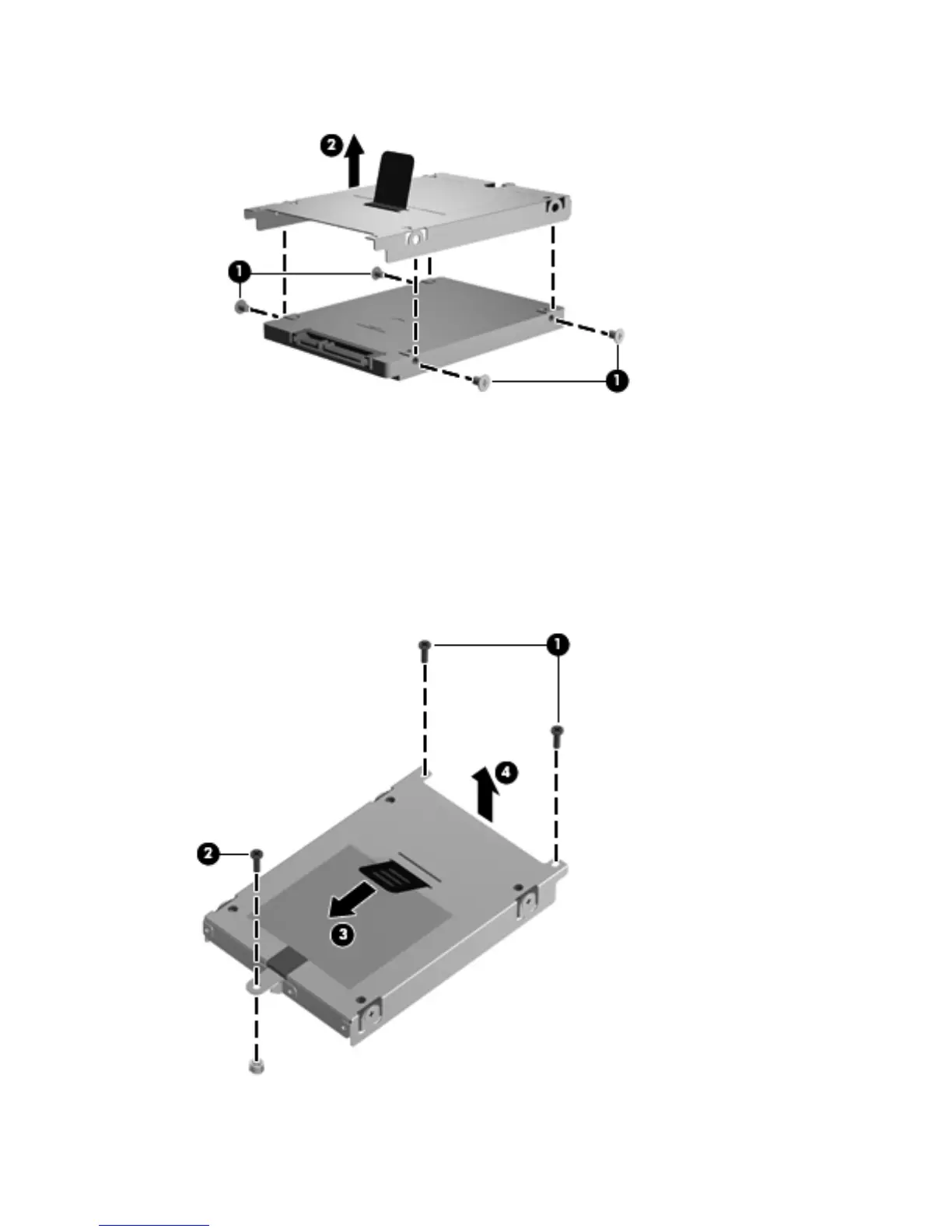

Remove the hard drive from a 35.6-cm (14-in) or 33.8-cm (13.3-in) computer:
1. Position the computer right-side up with the front toward you.
2. Remove the two Phillips PM2.5×6.0 screws (1) and the Phillips PM2.5×4.0 screw (2) that secure
the hard drive to the computer.
3.
Grasp the mylar tab on the hard drive and slide the hard drive (3) to the right to disconnect it
from the system board.
4. Remove the hard drive (4) from the hard drive bay.
60 Chapter 4 Removal and replacement procedures
