4.

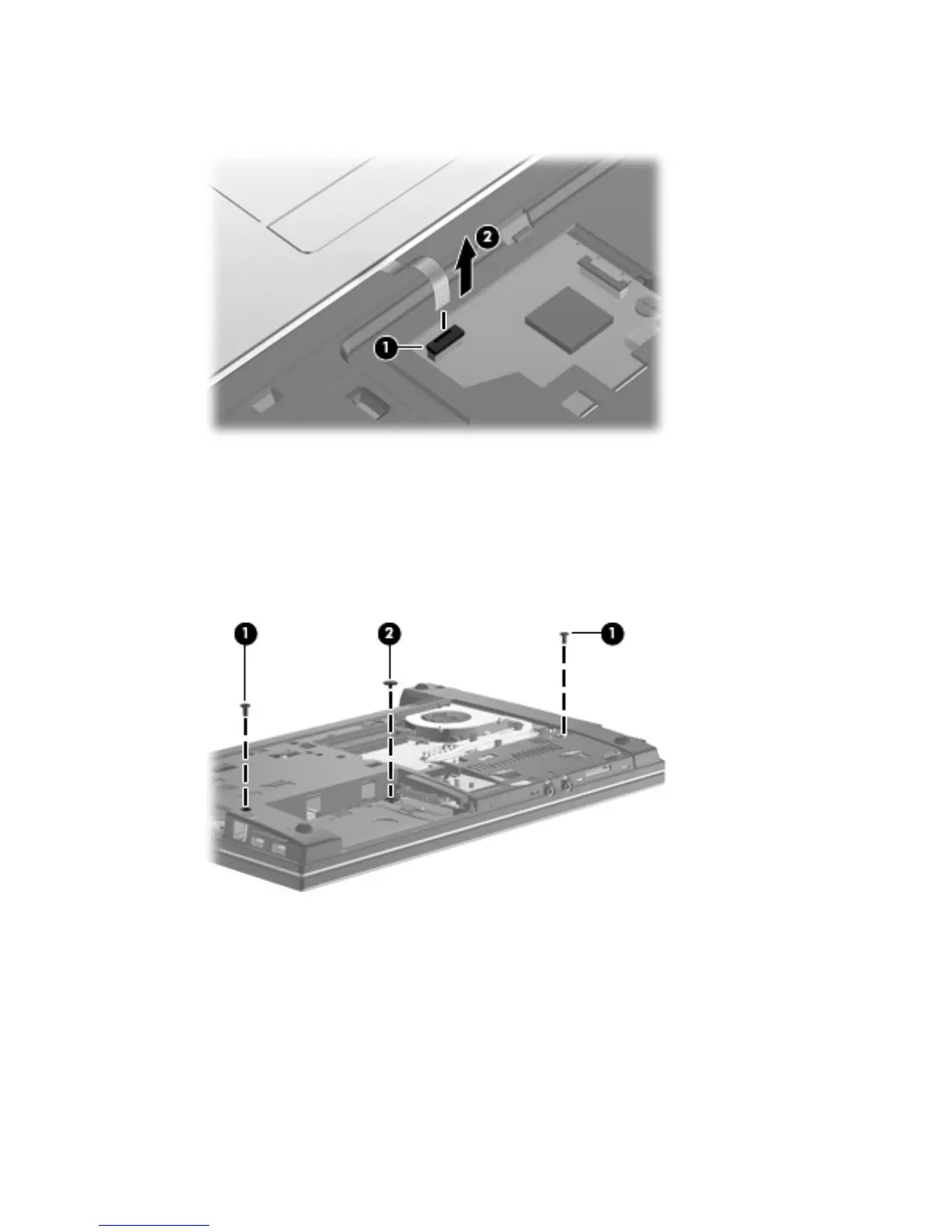

Release the ZIF connector (1) to which the TouchPad cable is connected, and then disconnect the
cable (2) from the system board.
5.
Remove the palm rest.
Remove the palm rest on 35.6-cm (14-in) or 33.8-cm (13.3-in) computers:
1. Position the computer upside down with the front toward you.
2. Remove the two Torx M2.5×6.0 screws (1) and one Philllips PM2.25×2.5 broadhead screw (2)
that secure the palm rest to the computer.
Component replacement procedures
75
