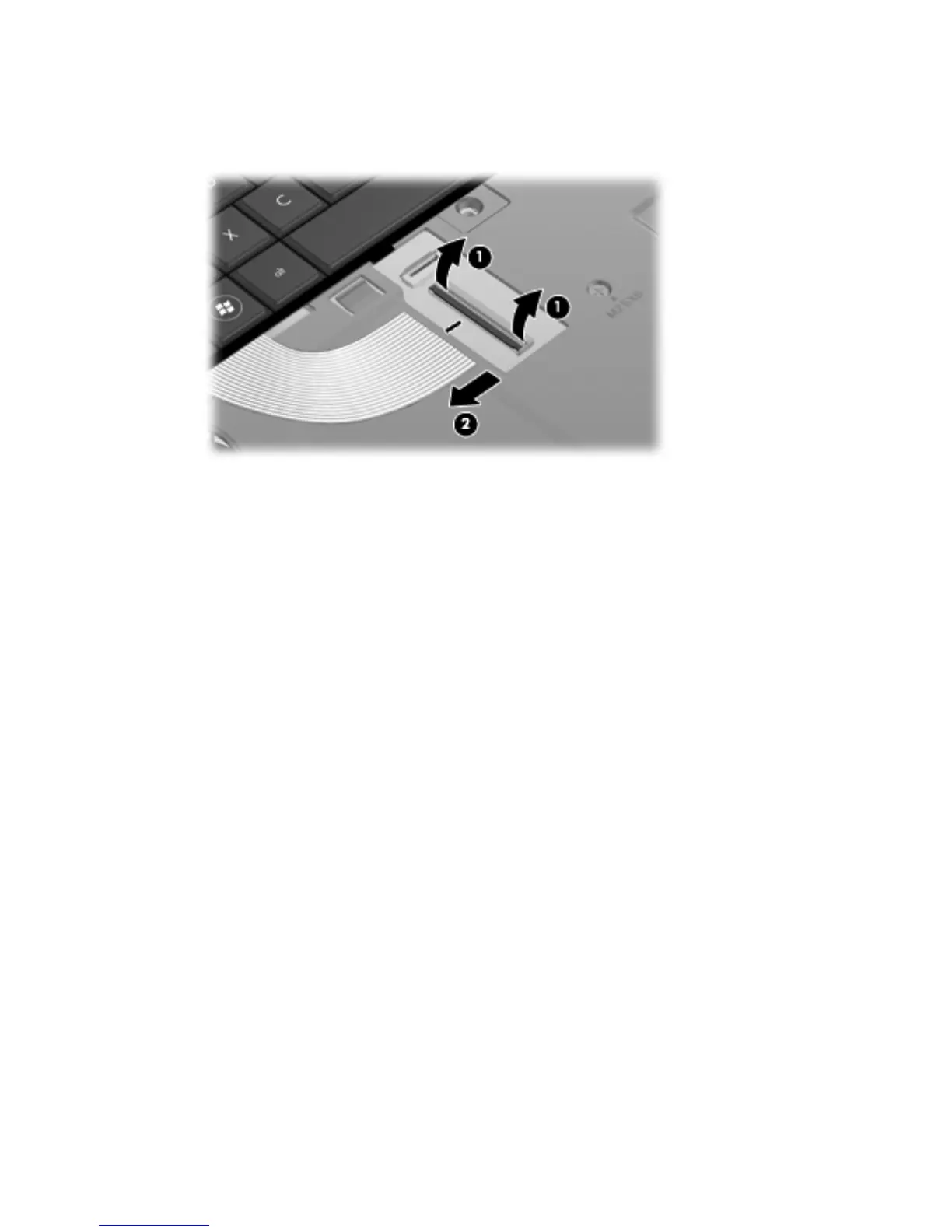

4.
Rest the keybo
ard on its edge an
d slide the ke
yboard back toward the di
splay then, release the
ZIF connector
(1)
to which the keyboard cable
is attached, and disconnect the key
board cable
(2)
from the system board.
Reverse this procedure
to install the switc
h cover and keyboard.
Component replacement proced
ures
81
88
90
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
18
Top Components
18
Touchpad
18
Lights
19
Buttons, Switch, and Speaker
21
Keys
22
Front Components
24
Right-Side Components
24
Left-Side Components
26
Bottom Components
27
Multimedia Components
28
Wireless Antennas (Select Models Only)
30
Additional Hardware Components
31
3 Illustrated Parts Catalog
32
Service Tag
32
Computer Major Components
34
Display Assembly Components
41
Plastics Kit
43
Cables
44
Mass Storage Devices
45
Miscellaneous Parts
47
Sequential Part Number Listing
48
4 Removal and Replacement Procedures
57
Preliminary Replacement Requirements
57
Tools Required
57
Service Considerations
57
Plastic Parts
57
Cables and Connectors
58
Drive Handling
58
Grounding Guidelines
59
Electrostatic Discharge Damage
59
Packaging and Transporting Guidelines
60
Workstation Guidelines
60
Equipment Guidelines
61
Component Replacement Procedures
62
Service Tag
62
Computer Feet
63
Battery
64
Service Door
64
Hard Drive
67
Memory Module
72
WLAN Module
74
Optical Drive
76
Fan
77
Heat Sink
78
Processor
79
Palm Rest
81
Keyboard
86
Top Cover
90
Power Switch Board
95
Bluetooth Module
97
USB Connector Assembly
98
Speaker
100
Display Assembly
101
System Board
110
Main Battery Connector
114
RTC Battery
116
Modem Module
117
Audio Board
119
5 Computer Setup
121
Computer Setup in Windows
121
Starting Computer Setup
121
Using Computer Setup
121
Navigating and Selecting in Computer Setup
121
Restoring Factory Settings in Computer Setup
122
Computer Setup Menus
123
File Menu
123
Security Menu
125
System Configuration Menu
126
Computer Setup in Linux
131
Starting Computer Setup
131
Using Computer Setup
132
Navigating and Selecting in Computer Setup
132
Restoring Factory Settings in Computer Setup
132
Computer Setup Menus
133
File Menu
133
Diagnostics Menu
134
Security Menu
134
System Configuration Menu
135
6 Specifications
137
Computer Specifications
137
39.6-CM (15.6-In) Display Specifications
138
35.6-CM (14.0-In) Display Specifications
140
33.8-CM (13.3-In) Display Specifications
141
Hard Drive Specifications
142
DVD-ROM Drive Specifications
143
DVD±RW Double-Layer Combo Drive Specifications
144
7 Backup and Recovery
145
Backup and Recovery in Windows 7
145
Overview
145
Backing up Your Information
145
Performing a Recovery
147
Using the Windows Recovery Tools
147
Using F11
148
Using a Windows 7 Operating System DVD (Purchased Separately)
148
Backup and Recovery in Windows Vista
149
Overview
149
Backing up Your Information
149
Performing a Recovery
150
Using the Windows Recovery Tools
151
Using F11
151
Using a Windows Vista Operating System DVD (Purchased Separately)
152
Backup and Recovery in Windows XP
153
Overview
153
Backing up Your Information
153
Performing a Recovery
154
Recovering Your Information
154
Recovering the Operating System and Programs
154
8 Connector Pin Assignments
156
Audio-In (Microphone)
156
Audio-Out (Headphone)
156
External Monitor
157
Hdmi
158
Modem)
159
Network)
160
Universal Serial Bus
160
9 Power Cord Set Requirements
161
Requirements for All Countries and Regions
161
Requirements for Specific Countries and Regions
162
10 Recycling
163
Battery
163
Display
163
Index
