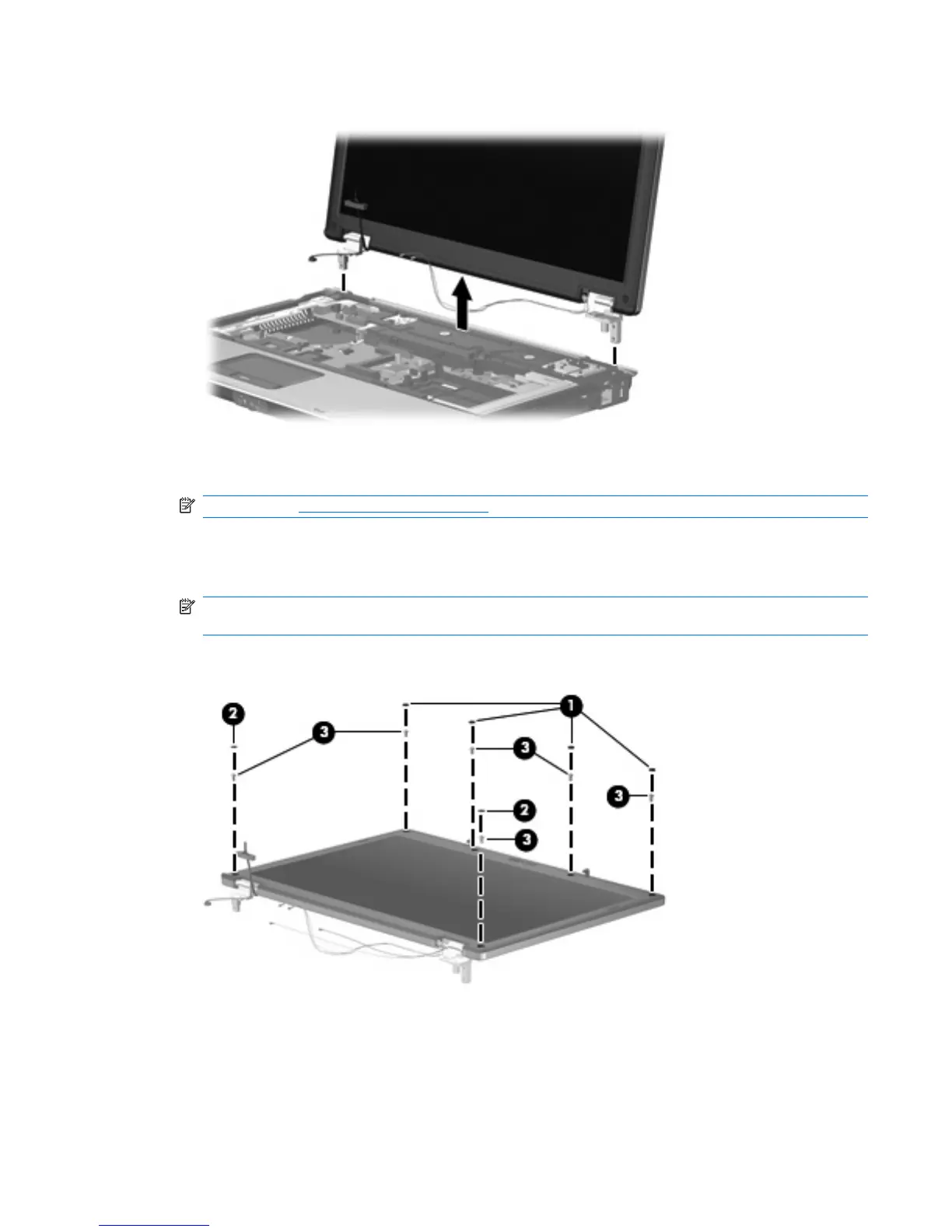

14. Lift the display assembly straight up and remove it.
15. If it is necessary to replace the display bezel, display panel, or display hinges, remove the
following:
NOTE: See Display inverter on page 48 for instructions on replacing the display inverter.
(1) Four beveled rubber screw covers on the display bezel top edge.
(2) Two flat rubber screw covers on the display bezel bottom edge.
NOTE: The display bezel rubber screw covers are available in the Display Rubber Kit, spare part
number 486775-001.
(3) Six Torx T8M2.5×6.0 screws.
16. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display
bezel until the bezel disengages from the display enclosure.
Component replacement procedures 77
