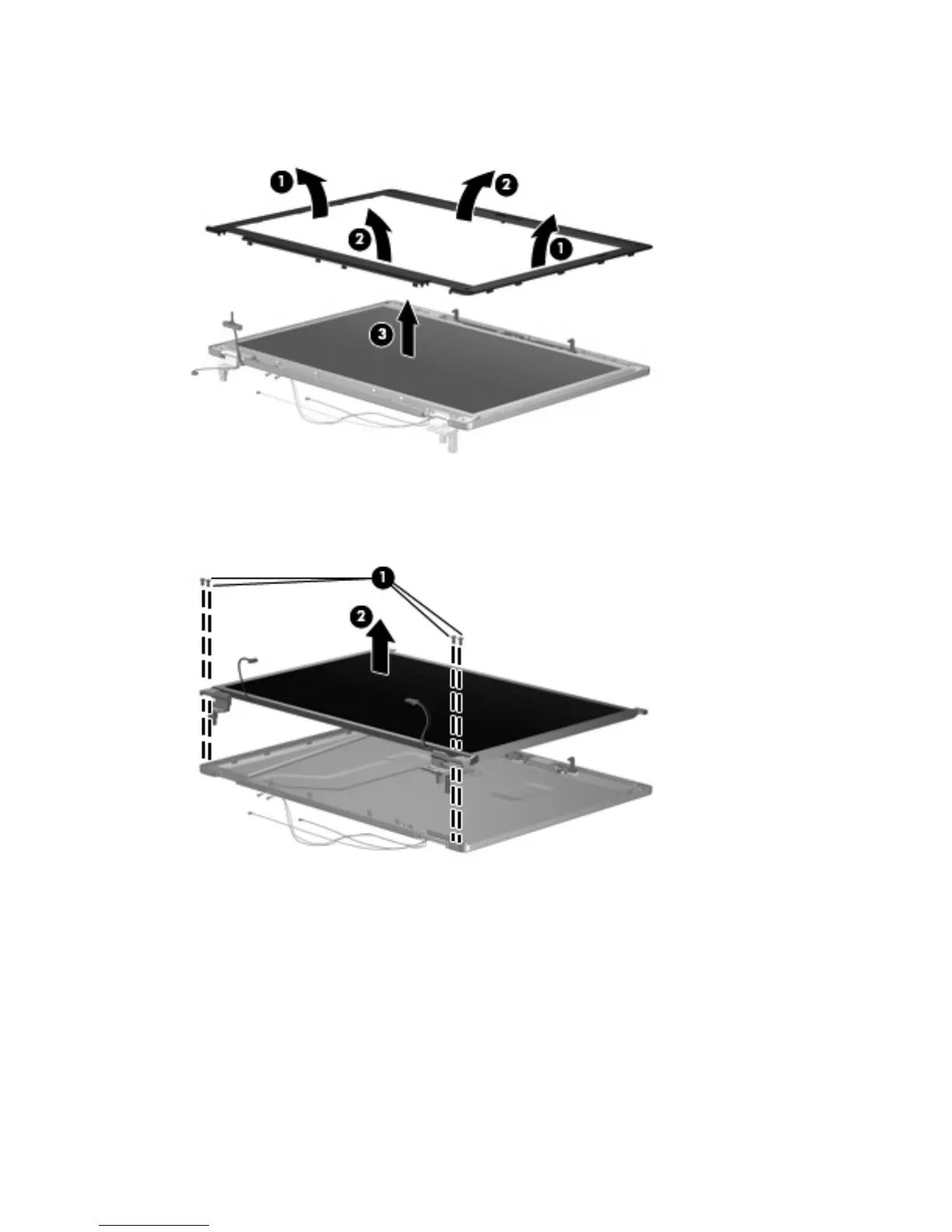

17. Remove the display bezel (3). The display bezel is available using spare part numbers 486770-001
(for use with computer models equipped with a webcam) and 487339-001 (for use with computer
models not equipped with a webcam).
18. If it is necessary to replace the display hinges, remove the four Torx T8M2.5×6.0 screws (1) that
secure the display panel to the display enclosure.
19. Remove the display panel (2).
20. Remove the four Phillips PM2.0×3.0 screws (1) that secure each display hinge to the display
panel.
78 Chapter 4 Removal and replacement procedures
