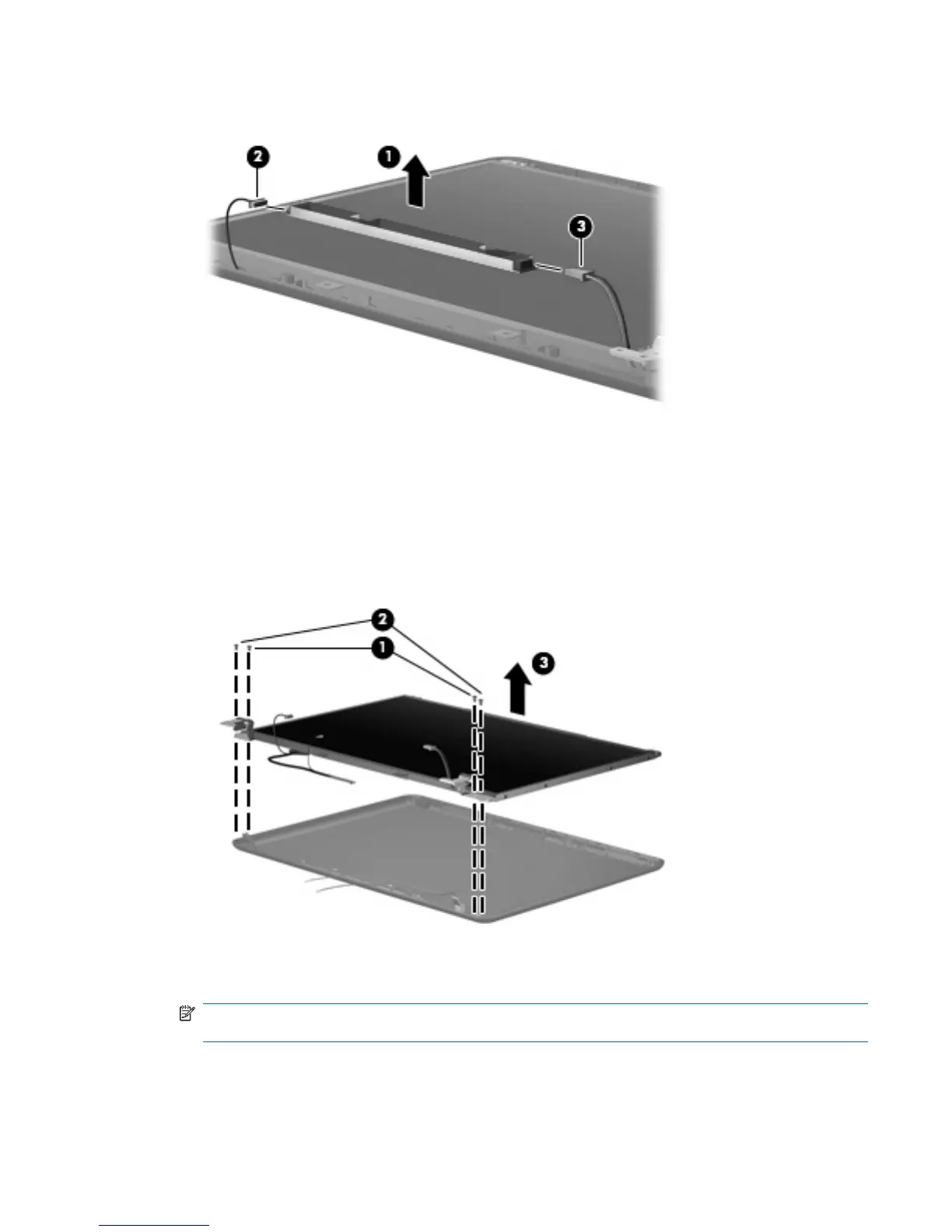

8. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
9. Remove the display inverter. The display inverter is available using spare part numbers
491256-001 (for use only with HP Compaq 6730s Notebook PC models) and 494116-001 (for use
only with HP Compaq 6735s Notebook PC models).
10. If it is necessary to replace the display hinges, remove the two Torx T8M2.5×6.0 screws (1) and
the two Torx T8M2.5×5.0 screws (2) that secure the display panel to the display enclosure.
11. Remove the display panel (3).
12. Remove the four Phillips PM2.0×3.0 screws (1) that secure each display hinge to the display
panel.
NOTE: When removing or replacing the eight Phillips screws, be sure to remove or replace them
in the same sequence as the numbering found on the display hinges (1–2–3–4).
Component replacement procedures 71
