HP Compaq 8200 Elite Series - Introduction to the Guide; System Overview; System Features; System Architecture

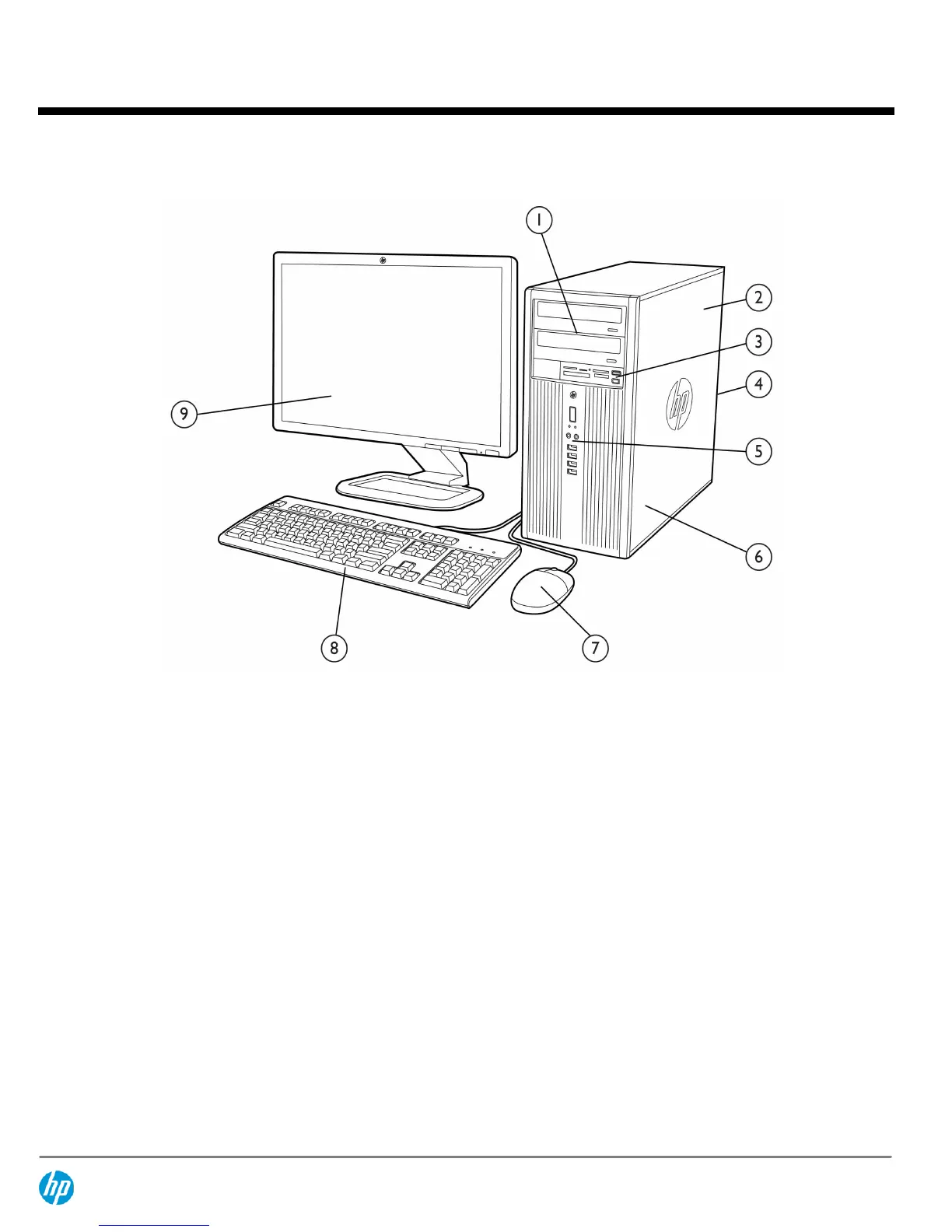

HP Compaq 8200 Elite Microtower Business PC
1 (2) 5.25” external drive bays supporting optical disk drives or removable hard disk drives; (2) 3.5" internal drive bays
supporting hard disk drives capable of RAID configurations
2 320W standard or 90% high efficiency Power Supply
3 3.5” external drive bay supporting the HP Media Card Reader
4 Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a
and VGA video interfaces, and 3.5mm audio in/out jacks
5 Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
6 Full height expansion slots include (1) PCI, (1) PCI Express x1 and (2) PCI Express x16 graphics
7 HP Mouse
8 HP Keyboard
9 HP Monitor (sold separately)
QuickSpecs
HP Compaq 8200 Elite Series
Overview
DA - 13879 Worldwide — Version 34 — November 26, 2012 Page 3
