6. Remove the center access panel by pulling outward on the panel at the slot on the top edge of
the panel.

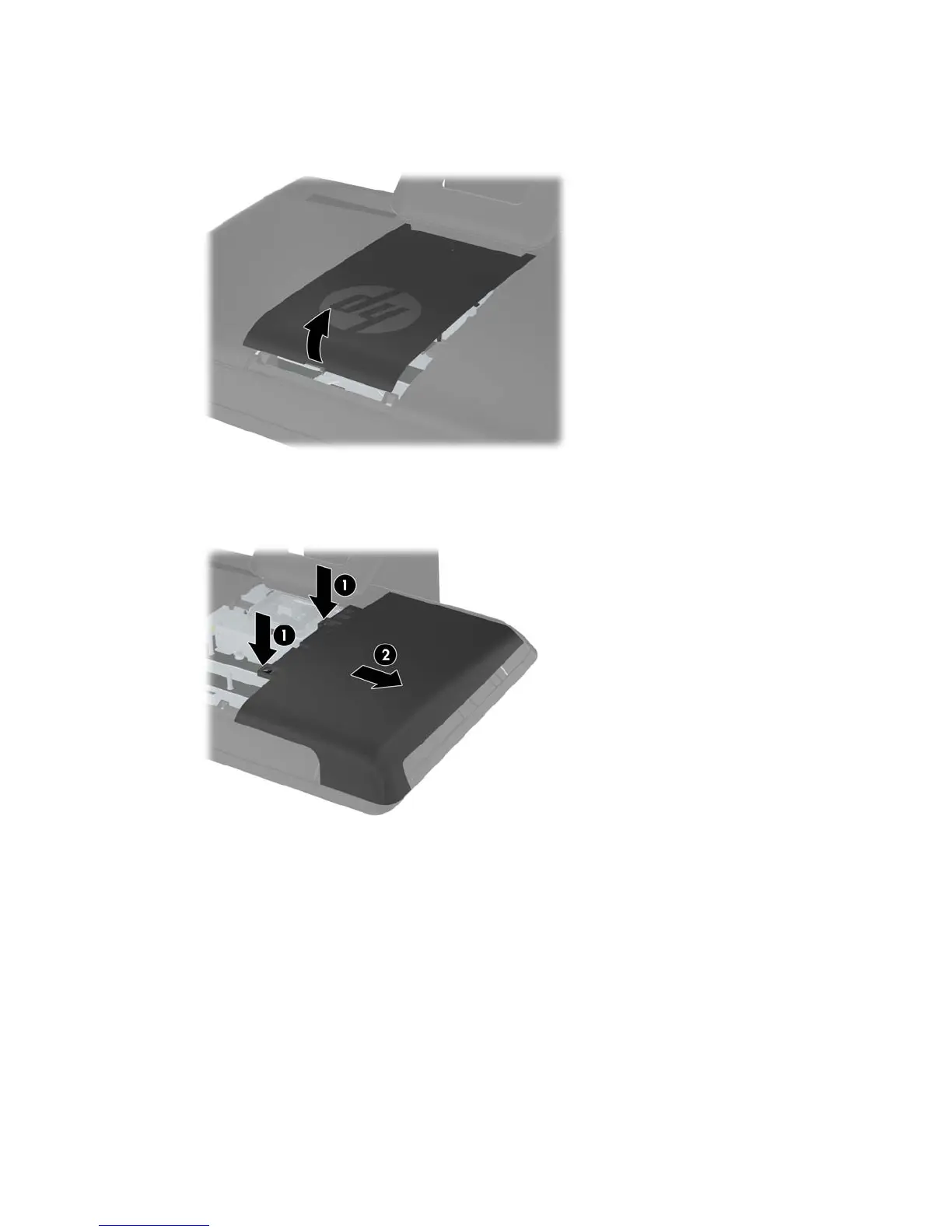

Figure 2-10 Removing the Center Access Panel
7. To remove the drive access panel, push downward on the two tabs on the inside edge of the
panel (1) and slide the panel off the computer (2).
Figure 2-11 Removing the Drive Access Panel
ENWW Replacing the Hard Drive 13
