8. Loosen the captive screw next to the front of the drive that secures the drive to the computer.
You can use either a Torx or slotted screwdriver to loosen the screw.

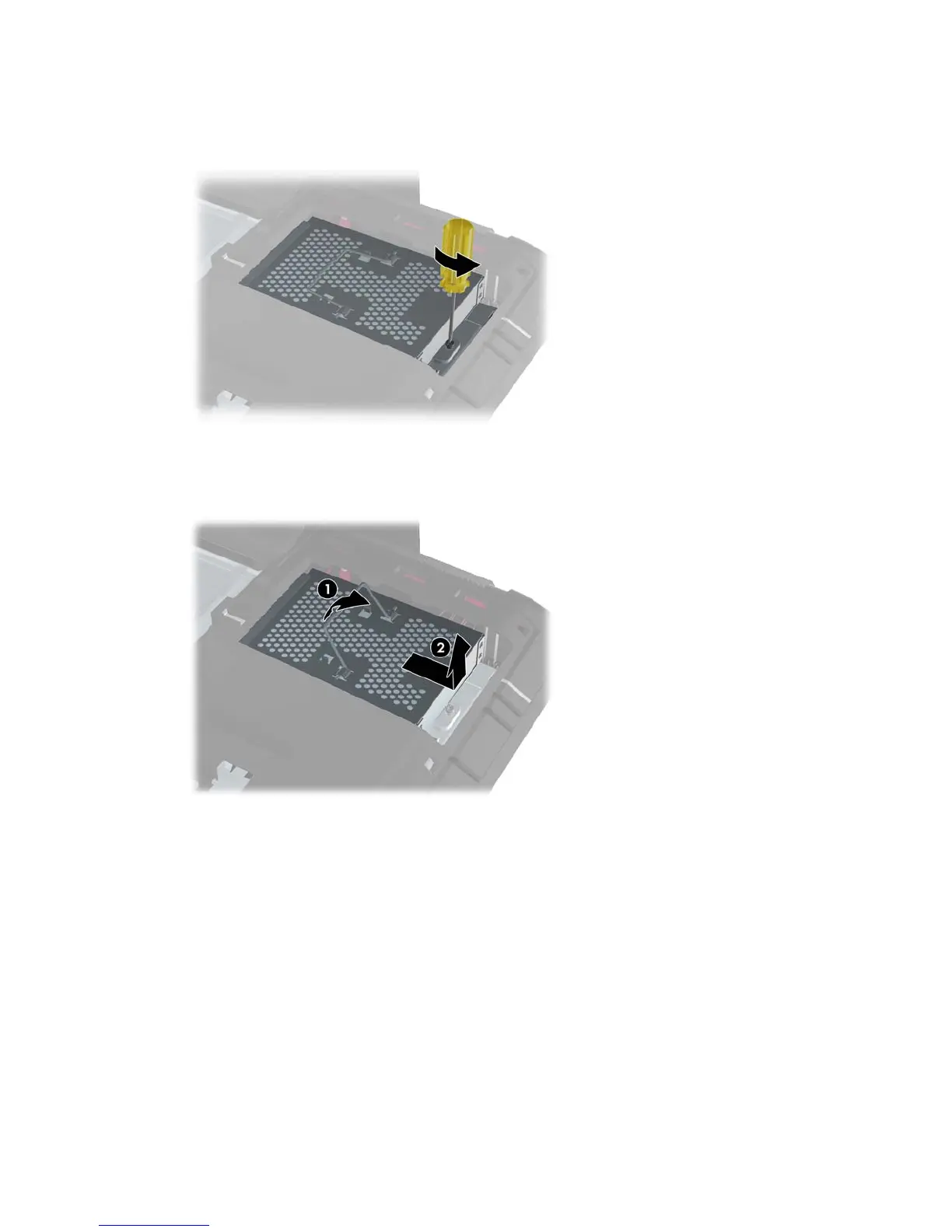

Figure 2-12 Loosening the Hard Drive Security Screw
9. Grasp the handle on top of the hard drive cage (1) and slide the cage toward the outer edge of
the computer, then lift the cage out of the computer (2).
Figure 2-13 Removing the Hard Drive Cage
14 Chapter 2 Hardware Repair and Upgrade ENWW
