14. Set the hard drive cage down into the bay so that the tabs on the bottom of the cage align with
the slots on the chassis and slide the cage toward the center of the computer (1) so that the
connector on the rear of the drive is securely seated. Rotate the handle on the cage down (2)
and lock it into the clips on top of the cage.

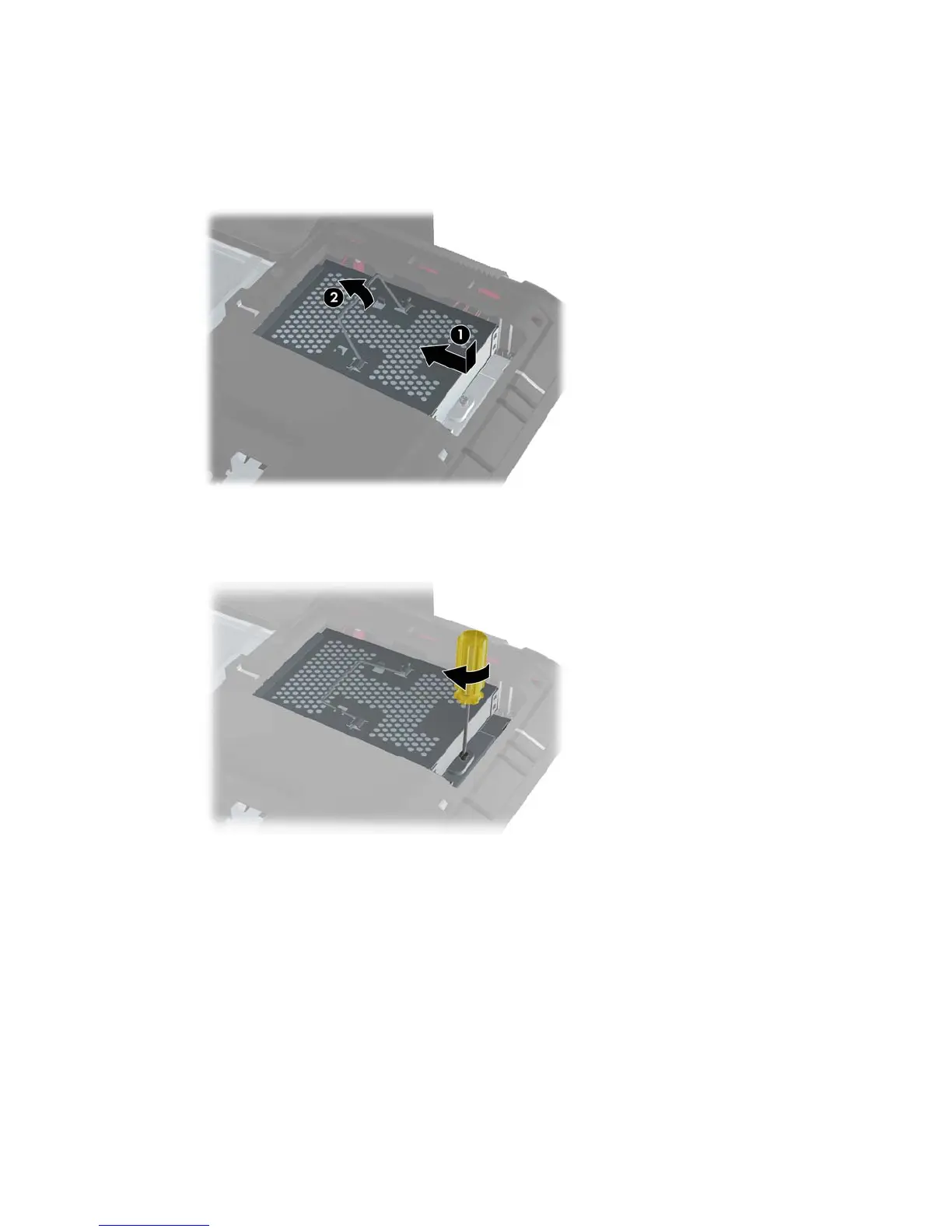

Figure 2-18 Installing the Hard Drive Cage
15. Tighten the captive screw to secure the hard drive cage in place. You can use either a Torx or
slotted screwdriver to tighten the screw.
Figure 2-19 Tightening the Hard Drive Security Screw
ENWW Replacing the Hard Drive 17
