12. Slide the new hard drive into the cage making sure that the connectors on the hard drive are at
the opening of the cage.

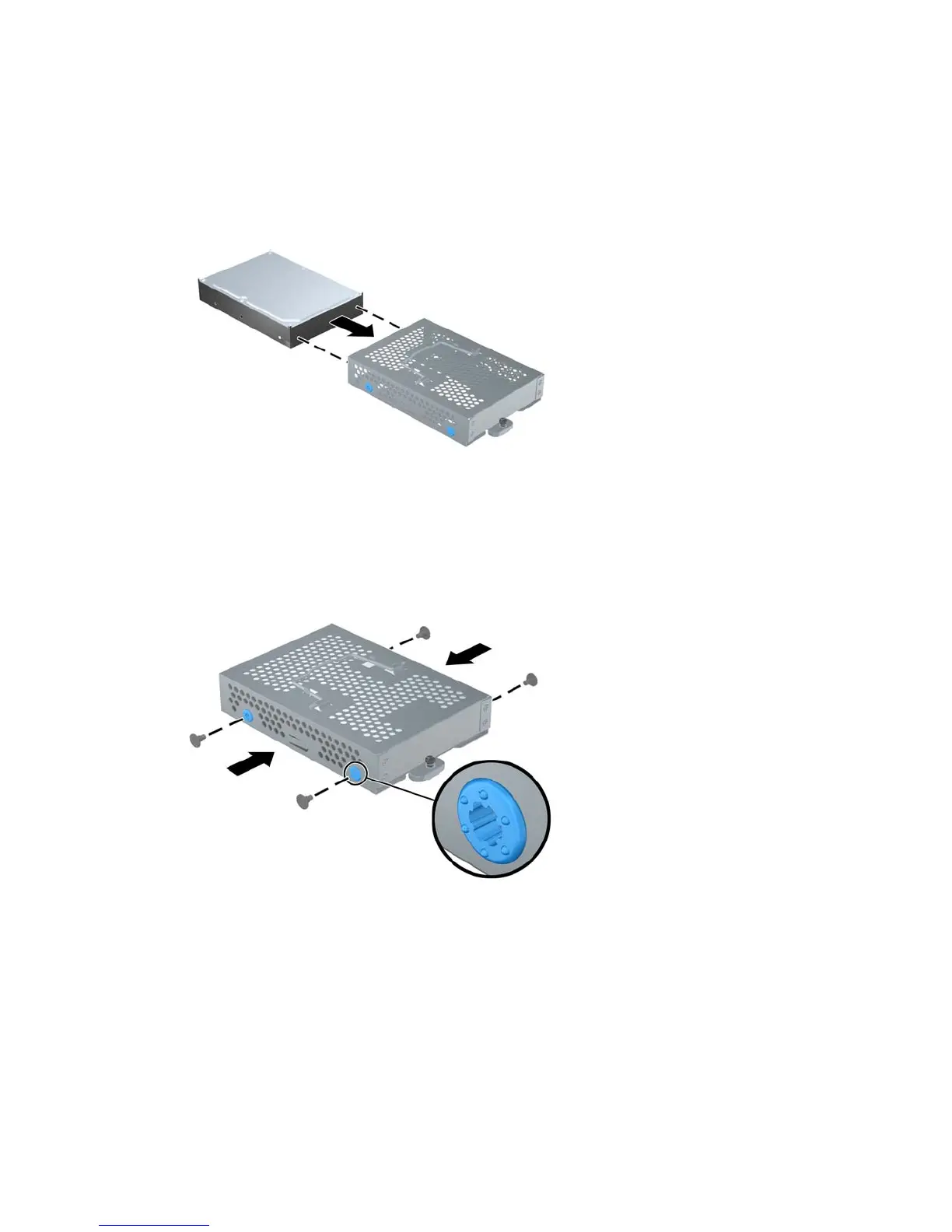

Figure 2-16 Sliding the Hard Drive into the Cage
13. Install the four mounting screws that secure the hard drive to the cage. Make sure that the blue
rubber grommets remain attached to the cage behind each screw.
Figure 2-17 Installing the Hard Drive Mounting Screws
16 Chapter 2 Hardware Repair and Upgrade ENWW
