HP Compaq dc5700 MT Hardware Reference Guide

b. If you are removing a standard PCI card, hold the card at each end, and carefully rock it back
and forth until the connectors pull free from the socket. Pull the expansion card straight up
from the socket (1) then away from the inside of the chassis (2) to release it from the chassis
frame. Be sure not to scrape the card against the other components.

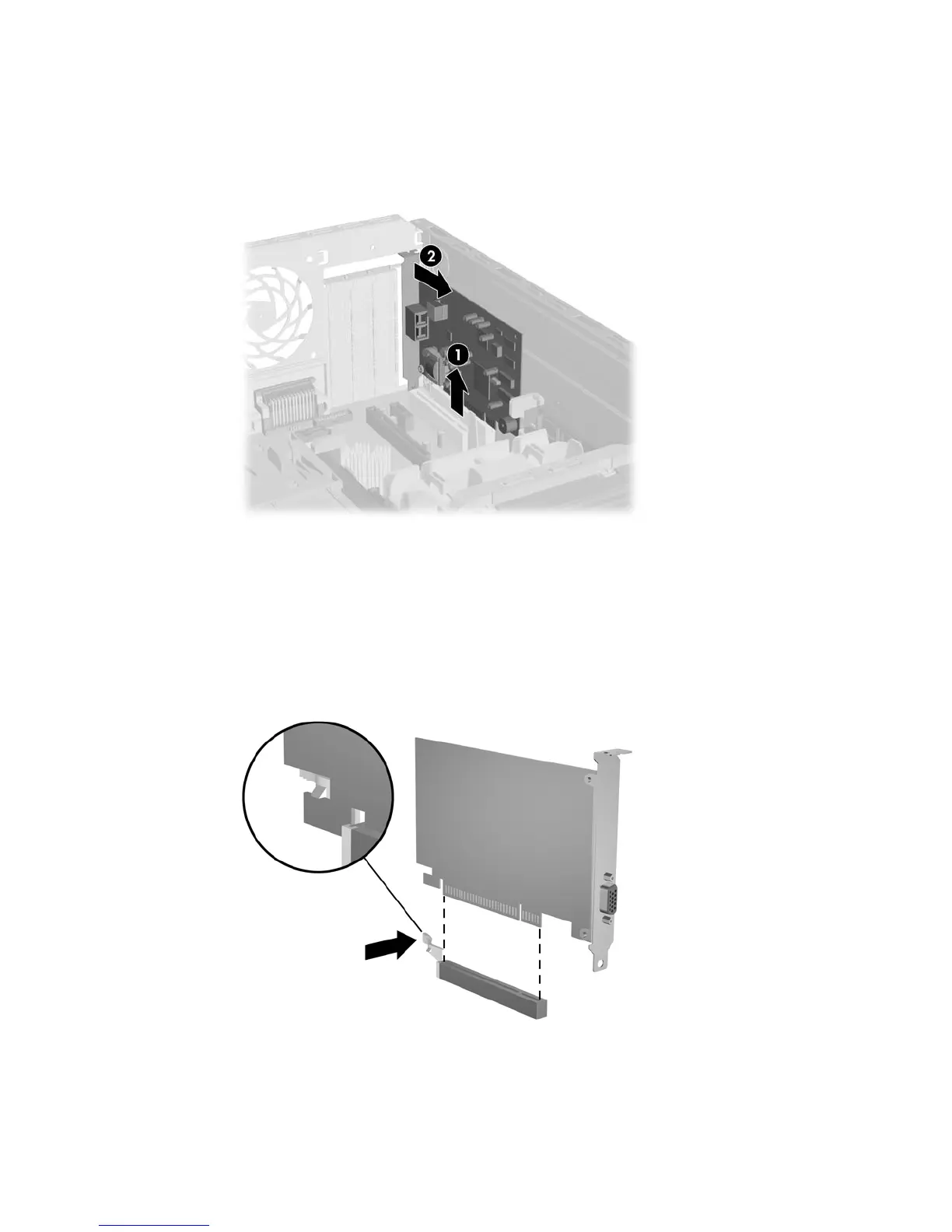

Figure 2-10 Removing a Standard PCI Expansion Card
c. If your are removing a ADD2/SDVO card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then away from the
inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against
the other components.
Figure 2-11 Removing a ADD2/SDVO Expansion Card
ENWW Removing or Installing an Expansion Card 19

HP Compaq dc5700 MT Specifications

General

Chipset	Intel Q965 Express
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	300W
Form Factor	Microtower
Processor	Intel Pentium D, Intel Celeron D
Memory	Up to 4 GB DDR2
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, VGA, serial, parallel
Operating System	Windows XP Professional, Windows Vista
Storage	SATA Hard Drive
