HP Compaq dc5700 MT Hardware Reference Guide

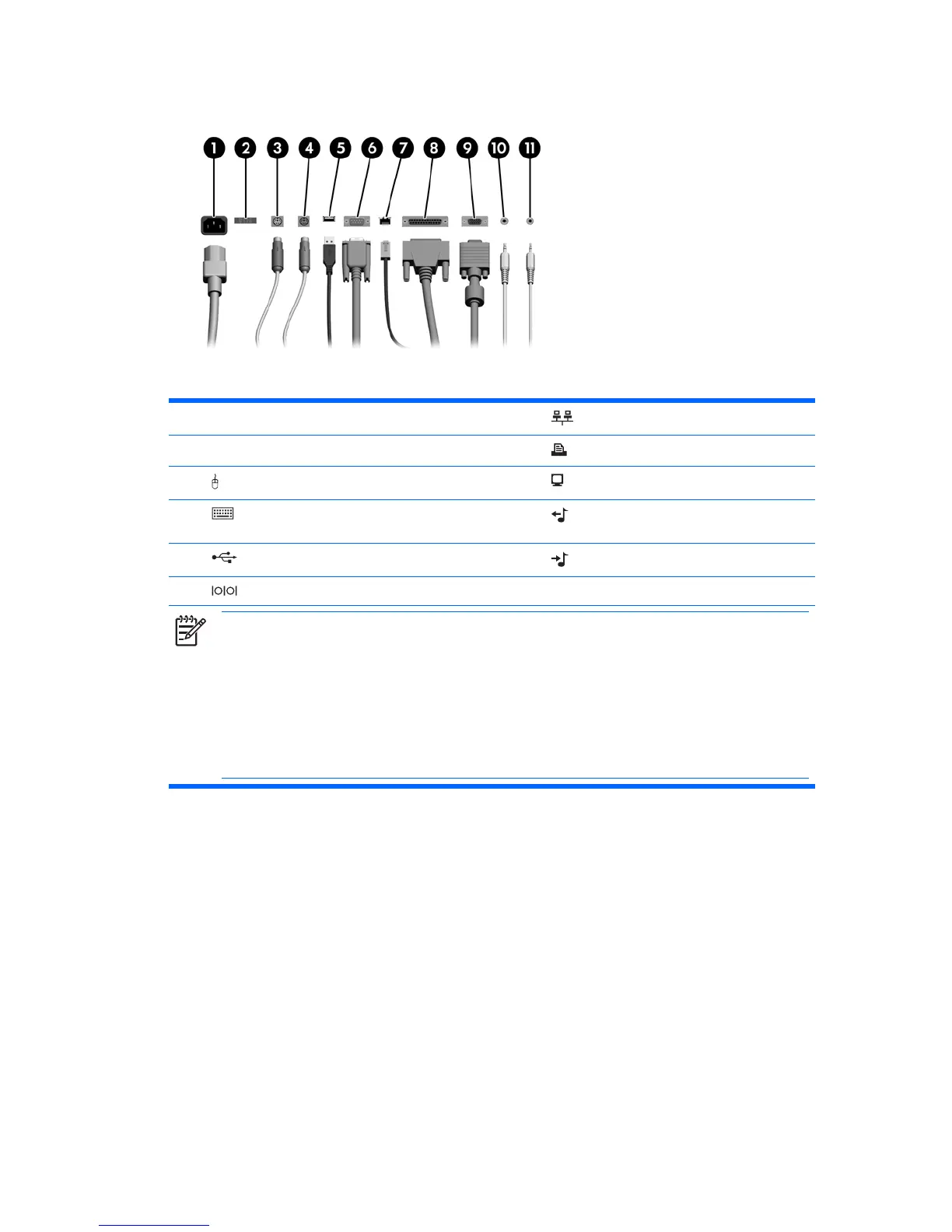

Rear Panel Components
Table 1-2 Rear Panel Components
1 Power Cord Connector 7 RJ-45 Network Connector
2 Voltage Select Switch 8 Parallel Connector
3 PS/2 Mouse Connector (green) 9 Monitor Connector
4 PS/2 Keyboard Connector (purple) 10 Line-Out Connector for powered audio
devices (green)
5 Universal Serial Bus (USB) 11 Line-In Audio Connector (blue)
6 Serial Connector
NOTE Arrangement and number of connectors may vary by model.
If a PCI graphics card is installed, the connectors on the card and the system board may be used at the same
time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about Boot Order, refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics
CD.
The Line-In and Line-Out audio connectors can be “retasked” to work as either Line-In, Line-Out, or
Microphone connectors by clicking the Realtek HD Audio Manager icon (a red speaker) in the task tray or
the Realtek entry in the operating system's Control Panel and selecting the Retasking Enable option.
ENWW Rear Panel Components 3

HP Compaq dc5700 MT Specifications

General

Chipset	Intel Q965 Express
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	300W
Form Factor	Microtower
Processor	Intel Pentium D, Intel Celeron D
Memory	Up to 4 GB DDR2
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, VGA, serial, parallel
Operating System	Windows XP Professional, Windows Vista
Storage	SATA Hard Drive
