HP Compaq dc5700 MT Hardware Reference Guide

b. If you are removing a diskette drive, disconnect the data cable (1) and power cable (2) from
the back of the drive.

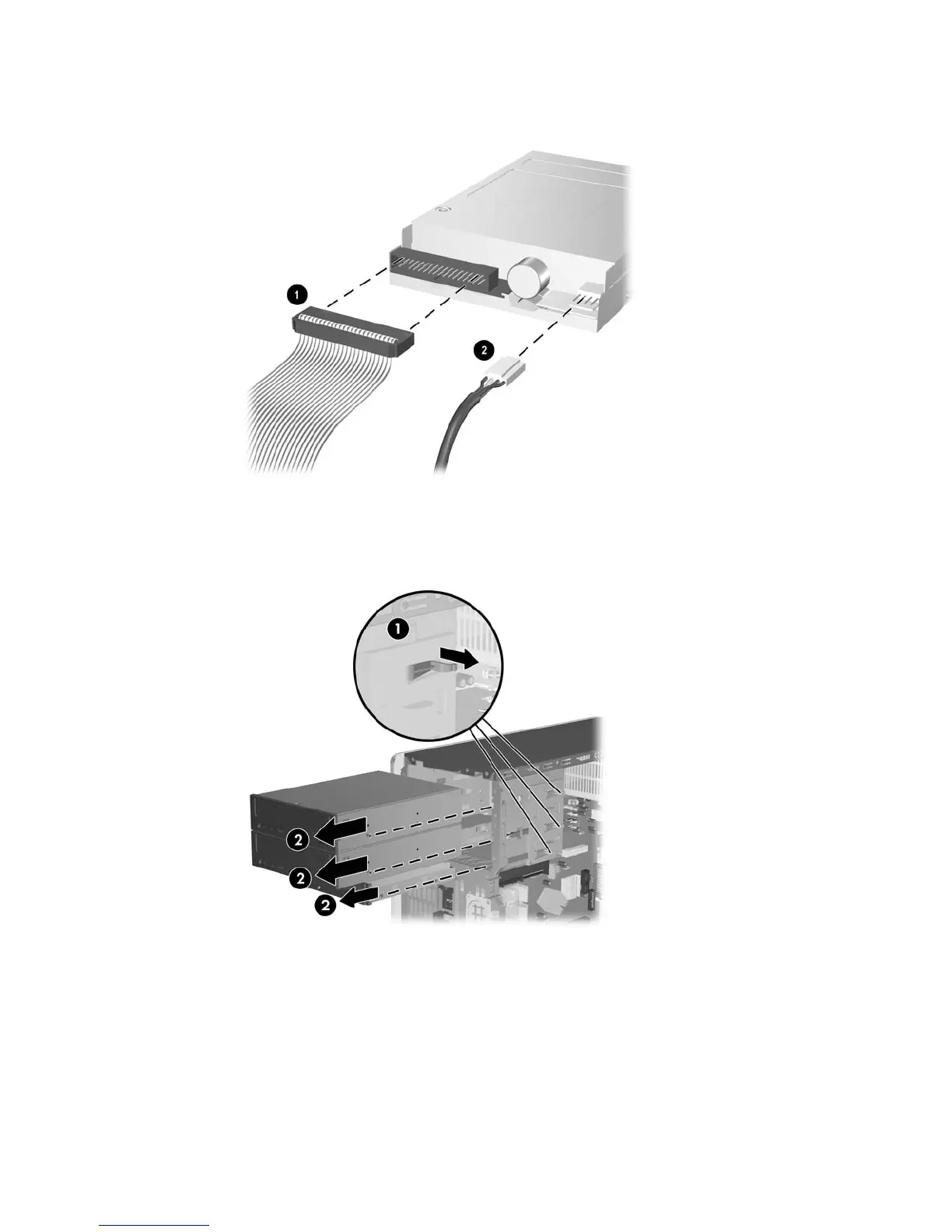

Figure 2-16 Disconnecting the Diskette Drive Cables
7. A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on
the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay
(2).
Figure 2-17 Removing the External Drives
8. Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
ENWW Installing Additional Drives 25

HP Compaq dc5700 MT Specifications

General

Chipset	Intel Q965 Express
Audio	Integrated High Definition audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Power Supply	300W
Form Factor	Microtower
Processor	Intel Pentium D, Intel Celeron D
Memory	Up to 4 GB DDR2
Graphics	Intel Graphics Media Accelerator 3000
Optical Drive	DVD-ROM
Expansion Slots	1 PCI Express x16
Ports	USB 2.0, VGA, serial, parallel
Operating System	Windows XP Professional, Windows Vista
Storage	SATA Hard Drive
