Removal and Replacement Procedures
Maintenance and Service Guide 5–69
3. Disconnect the modem module cable from the two
connectors 1 on the system board.
4. Remove the two Phillips PM2.0×4.0 screws 2 that secure
the modem board to the system board.
5. Lift the right side of the modem board 3 to disconnect it
from the system board.
6. Remove the modem board.

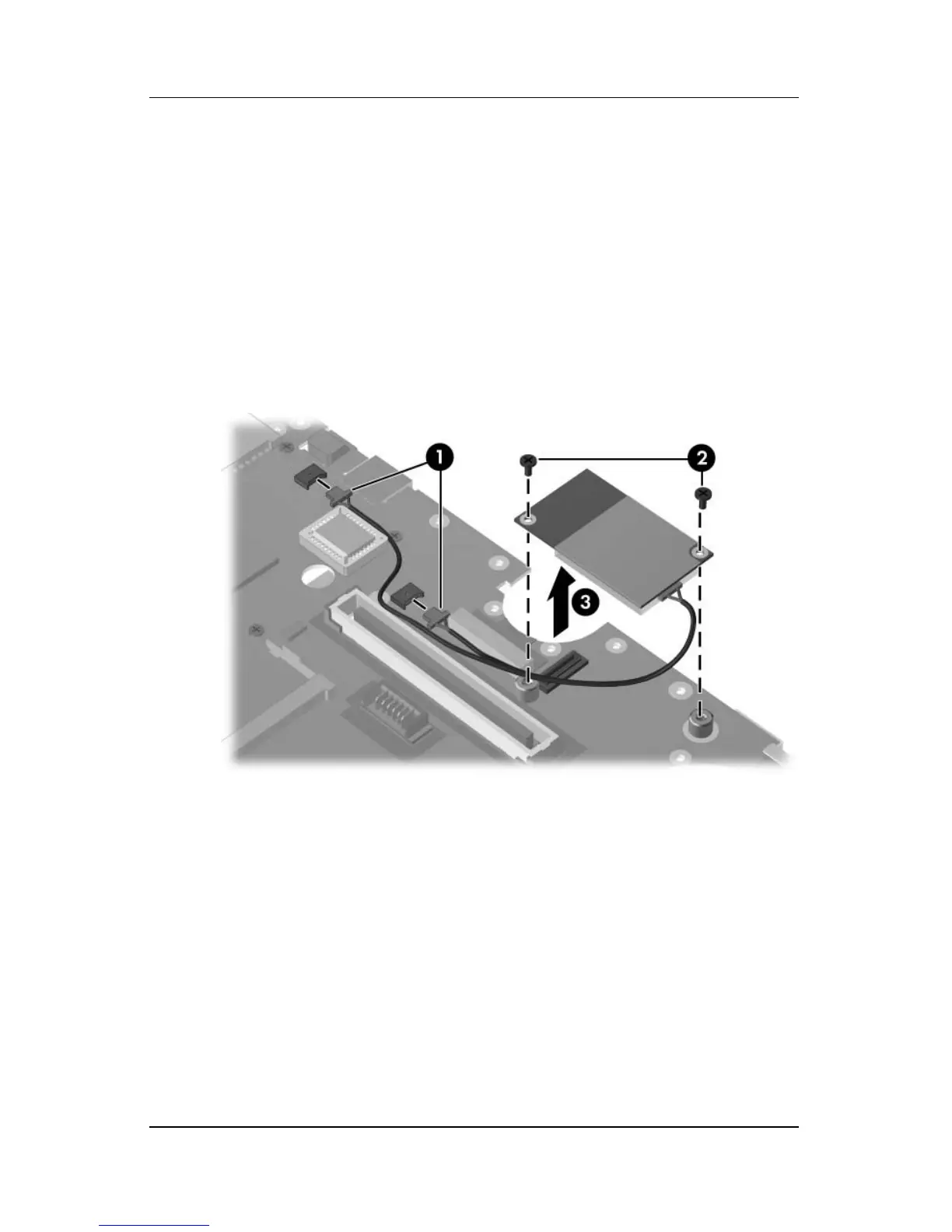

Removing the Modem Board
Reverse the above procedure to install the modem board.
