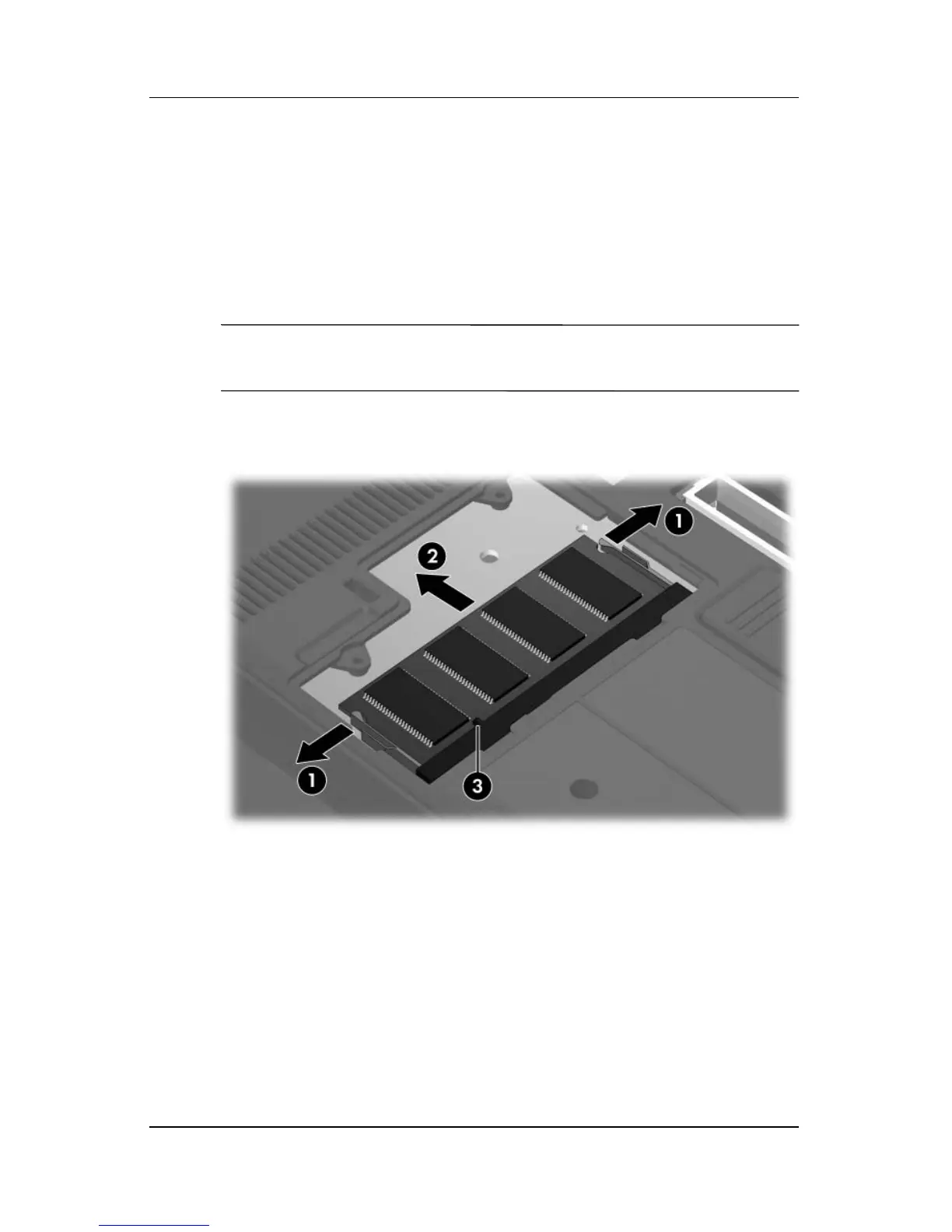

5. Spread the retaining tabs 1 on each side of the memory
module socket to release the memory module. (The side of
the module opposite the socket rises away from the
computer.)
6. Slide the module away from the socket at an angle 2.
7. Remove the memory module.
ā
Memory modules are designed with a notch 3 to prevent
incorrect installation into the memory module socket.
Removing the Memory Module
Reverse the above procedure to install an external memory
module.
