Getting Started with Your Notebook
Identifying Parts of the Notebook
4StartupGuide

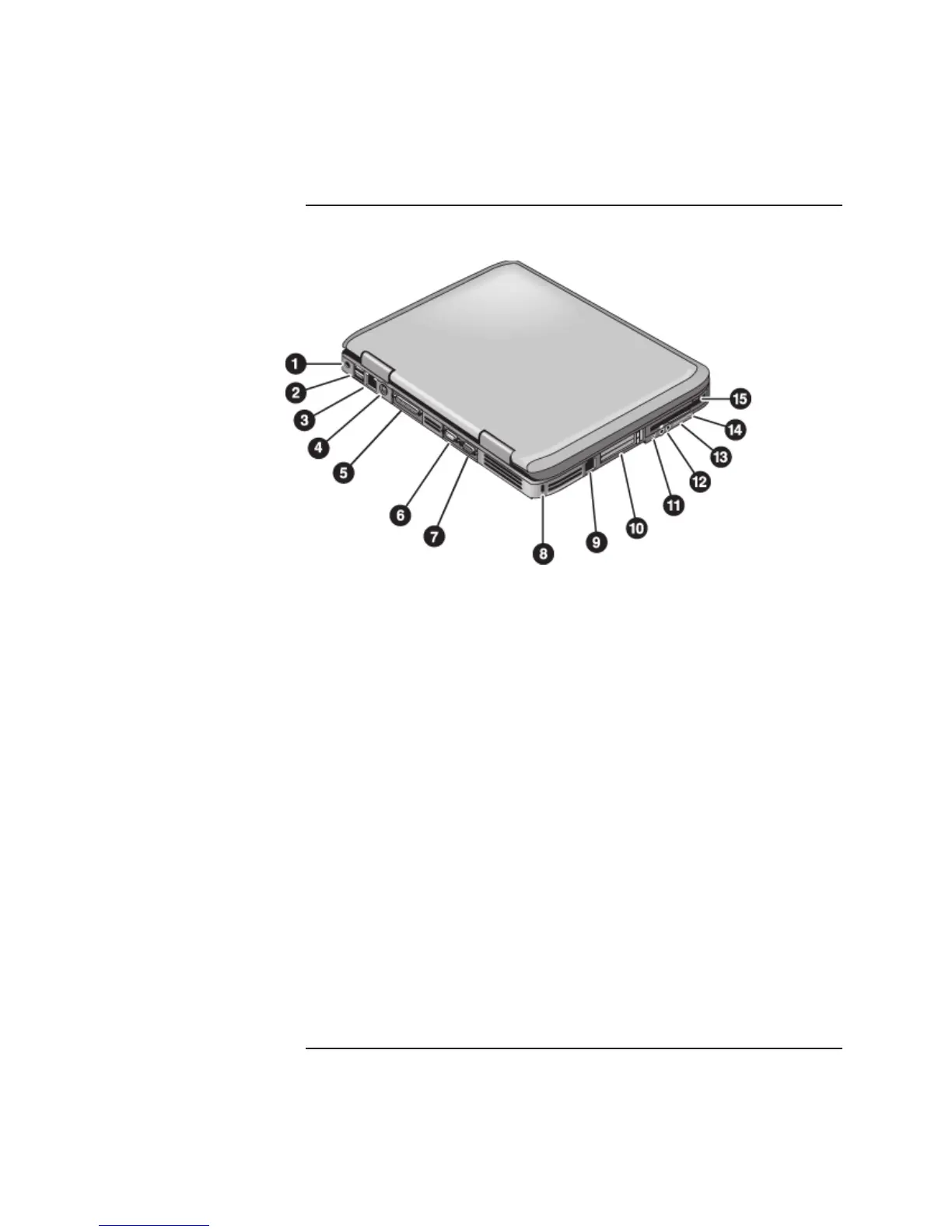

Left panel and back panel components
1 AC adapter jack
2 Universal serial bus ports (USB)
3 RJ-45 jack: connects a network cable
4 S-Video out jack
5 Parallel port (LPT1): use this port for a parallel
printer or other parallel device
6 Serial port (COM1): use this port for a serial
mouse, modem, printer, or other serial device
7 External monitor port
8 Cable lock slot (security connector)
9 RJ-11 jack: connects the modem cable
10 PC Card and CardBus slot and button
(location varies by model)
11 IEEE 1394 port (select models only)
12 Audio jacks (left to right): external microphone,
audio out (headphones)
13 Volume control
14 Audio mute button and audio mute light
15 Diskette drive (select models only)
