5–16 Maintenance and Service Guide
Removal and Replacement Procedures

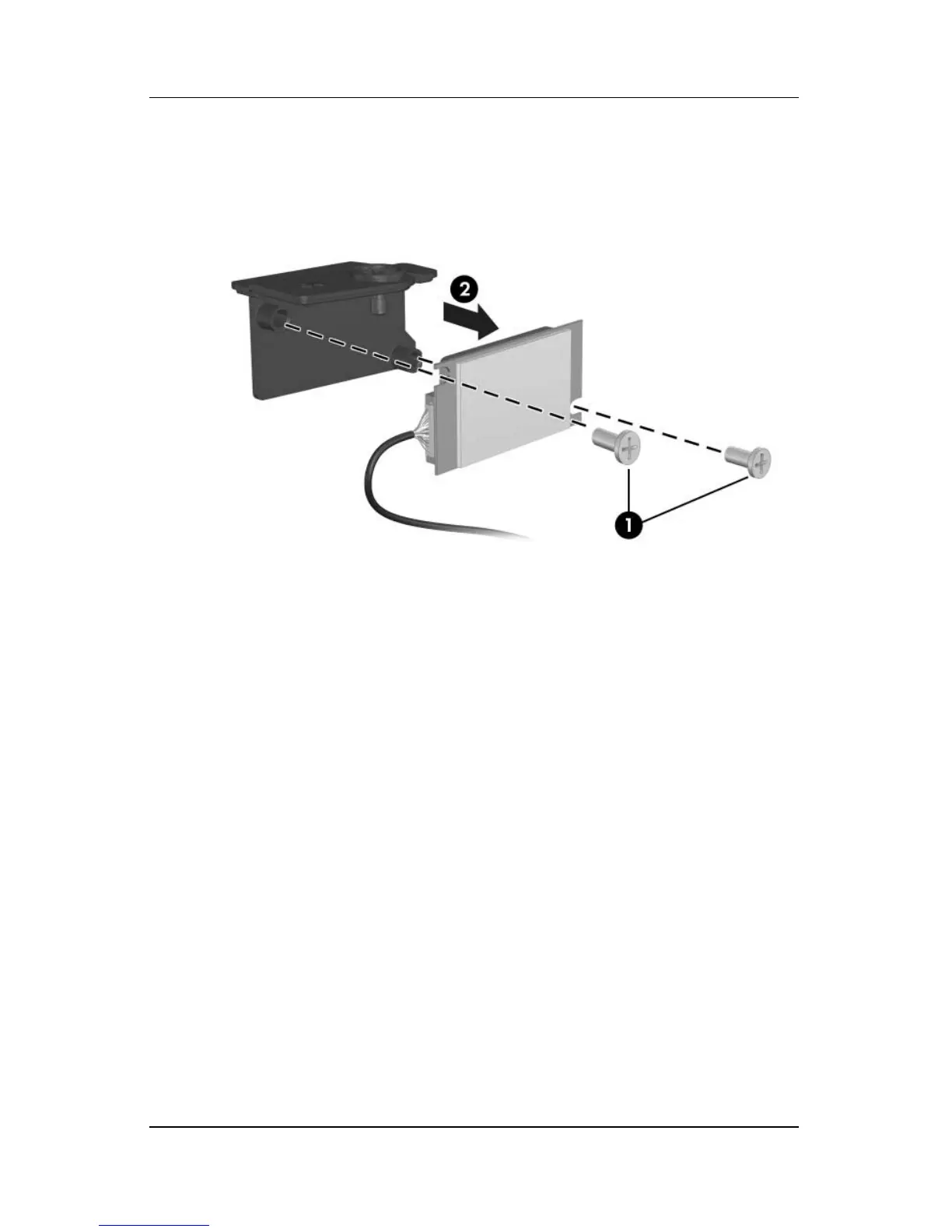

6. Remove the two PM1.5×3.0 screws 1 that secure the
Bluetooth board to the Bluetooth cover.
7. Remove the Bluetooth board 2 from the cover.
Removing the Bluetooth Board Cover
Reverse the above procedure to install a Bluetooth board.
