5–22 Maintenance and Service Guide
Removal and Replacement Procedures
5.10 Switch Cover
✎
Both switch cover spare part kits include the LED board and
LED board cable.
1. Prepare the notebook for disassembly (Section 5.3).
2. Remove the keyboard (Section 5.9).
3. Turn the notebook upside down with the rear panel
toward you.
4. Remove the three PM2.0×2.0 screws that secure the switch
cover to the notebook.

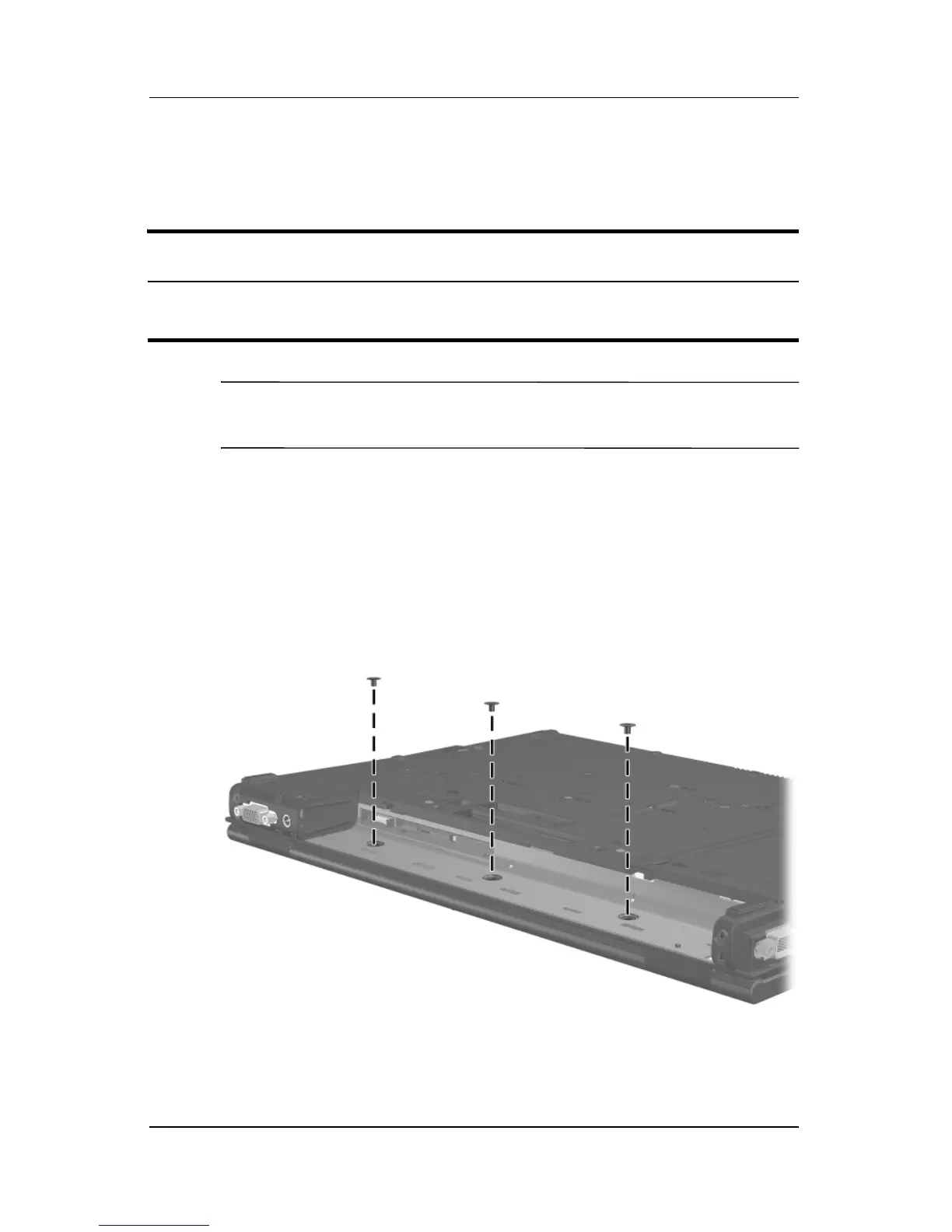

Removing the Switch Cover Screws
Switch Cover Spare Part Number Information
For use only with HP Compaq nw8240 and nc8230 models
For use only with HP Compaq nc8220 models
382680-001
384133-001

HP Compaq NX8220 Specifications

General

Memory slots	2x SO-DIMM
Internal memory	0.5 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	2 GB
HDD speed	5400 RPM
Optical drive type	DVD±RW
Total storage capacity	60 GB
Processor cache	1 MB
Processor family	Intel® Celeron® M
Processor frequency	1.4 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor front side bus	400 MHz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 90 %
Non-operating relative humidity (non-condensing)	5 - 90 %
TV-in port	No
Modem speed	56 Kbit/s
Battery type	8-cell
Expansion slots	1 Type I/II PCMCIA
Infrared data port	Yes
Power requirements	90W AC
Wireless technology	Broadcom 802.11b/g WLAN
I/O ports	HP Travel Battery
TV-out type	S-Video
Charging port type	DC-in jack
USB 2.0 ports quantity	3
Parallel ports quantity	0
CardBus PCMCIA slot type	Type II
Firewire (IEEE 1394) ports	1
Bundled software	HP One-Touch Button Software HP Mobile Print Driver Synaptics Touchpad Driver HP Help & Support HP Wireless Assistant Sonic RecordNow! InterVideo WinDVD - DVD Player InterVideo WinDVD Creator – DVD Authoring; HP Client Manager Software Smart Card Security for HP ProtectTools
Operating system installed	Windows XP Home Edition
Motherboard chipset	Intel® 915PM Express
HD type	Not supported
Display diagonal	15.4 \
Display resolution	1200 x 800 pixels
Native aspect ratio	16:10
Networking features	NetXtreme Gigabit (10/100/1000 NIC) PCI Express Ethernet
Pointing device	Touchpad
Audio system	HP Premier•Sound 16-bit
Discrete graphics card model	AMD Mobility Radeon X600
Maximum graphics card memory	0.064 GB
Battery life (max)	4.5 h
Battery life with optional 2nd battery	9 h
Country of origin	China

Weight and Dimensions

Weight	2770 g
