HP Compaq NX8220 - RJ-45 Network Pin Assignments

A–6 Maintenance and Service Guide
Connector Pin Assignments

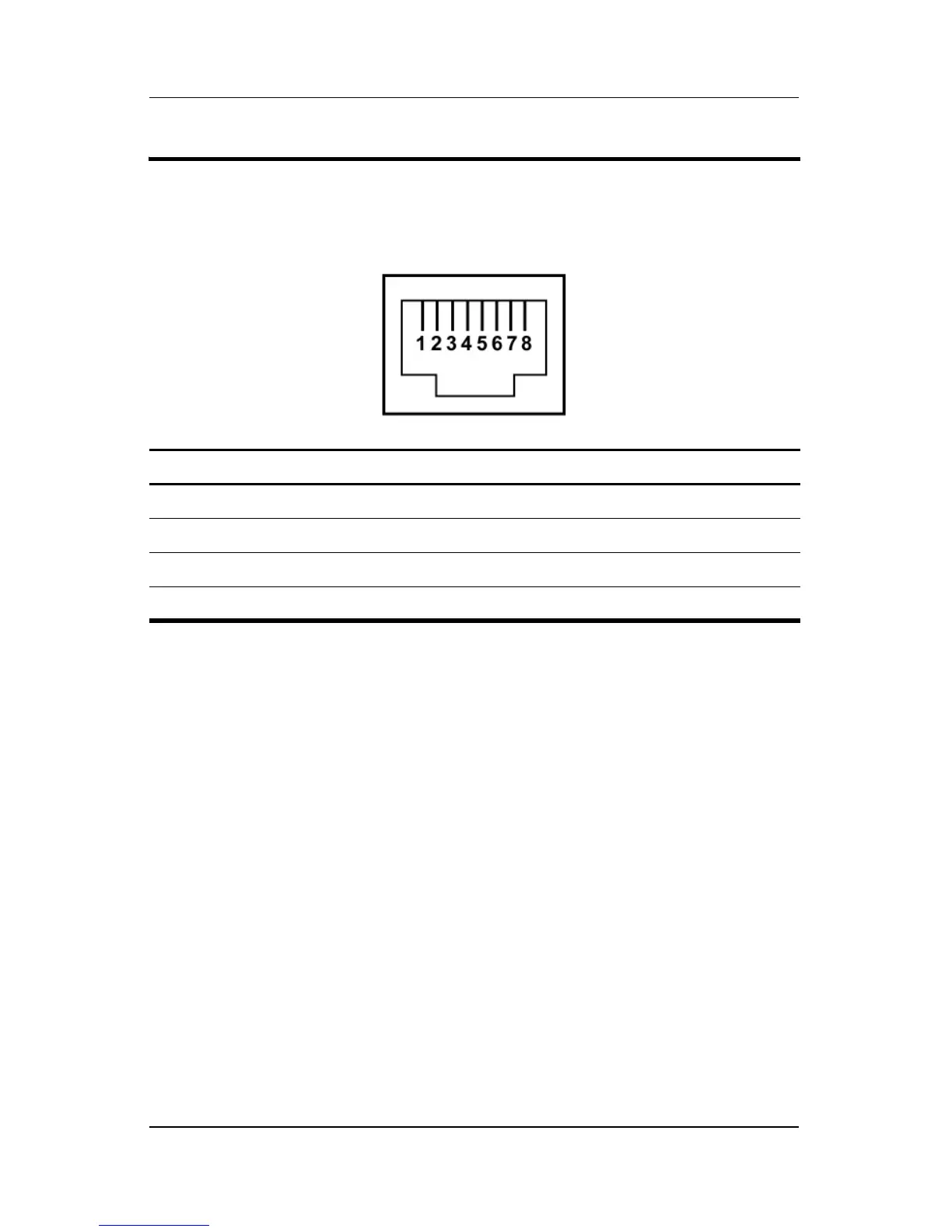

Table A-6
RJ-45 (Network)
Pin Signal Pin Signal
1 Transmit + 5 Unused
2 Transmit – 6 Receive –
3 Receive + 7 Unused
4 Unused 8 Unused
