5–6 Maintenance and Service Guide
Removal and Replacement Procedures
4. Remove the battery by following these steps:
a. Turn the computer upside down with the front toward you.
b. Slide the battery release latch 1 to the left. (The battery
disengages from the computer.)
c. Lift the front edge of the battery 2 and swing it back to
remove it.

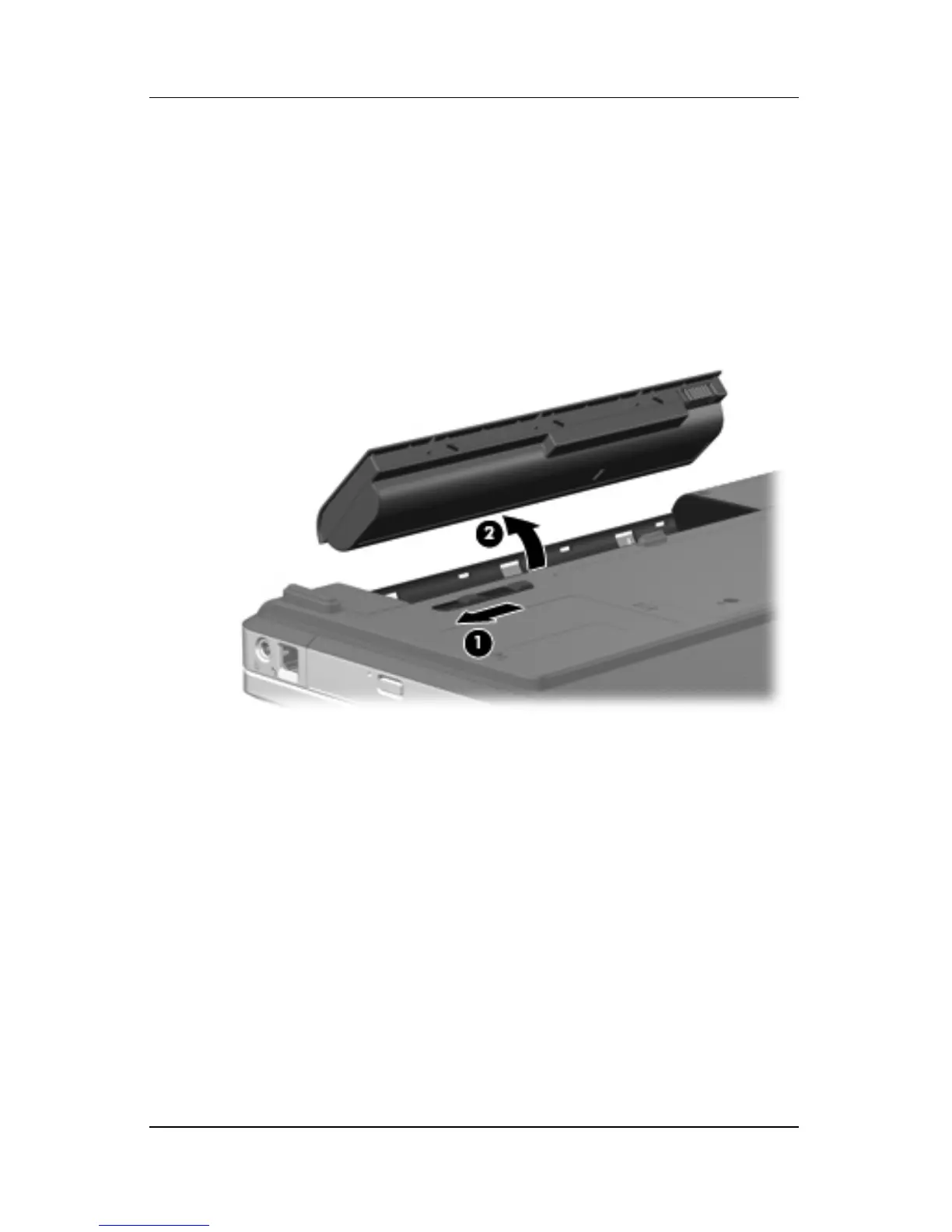

Removing the Battery
Reverse the above procedure to install the battery.
