Removal and Replacement Procedures
Maintenance and Service Guide 5–9
5. Remove the four Phillips PM3.0×4.0 hard drive bracket
screws 1 that secure the hard drive bracket to the hard drive.
6. Slide the bracket 2 away from the hard drive to remove it.

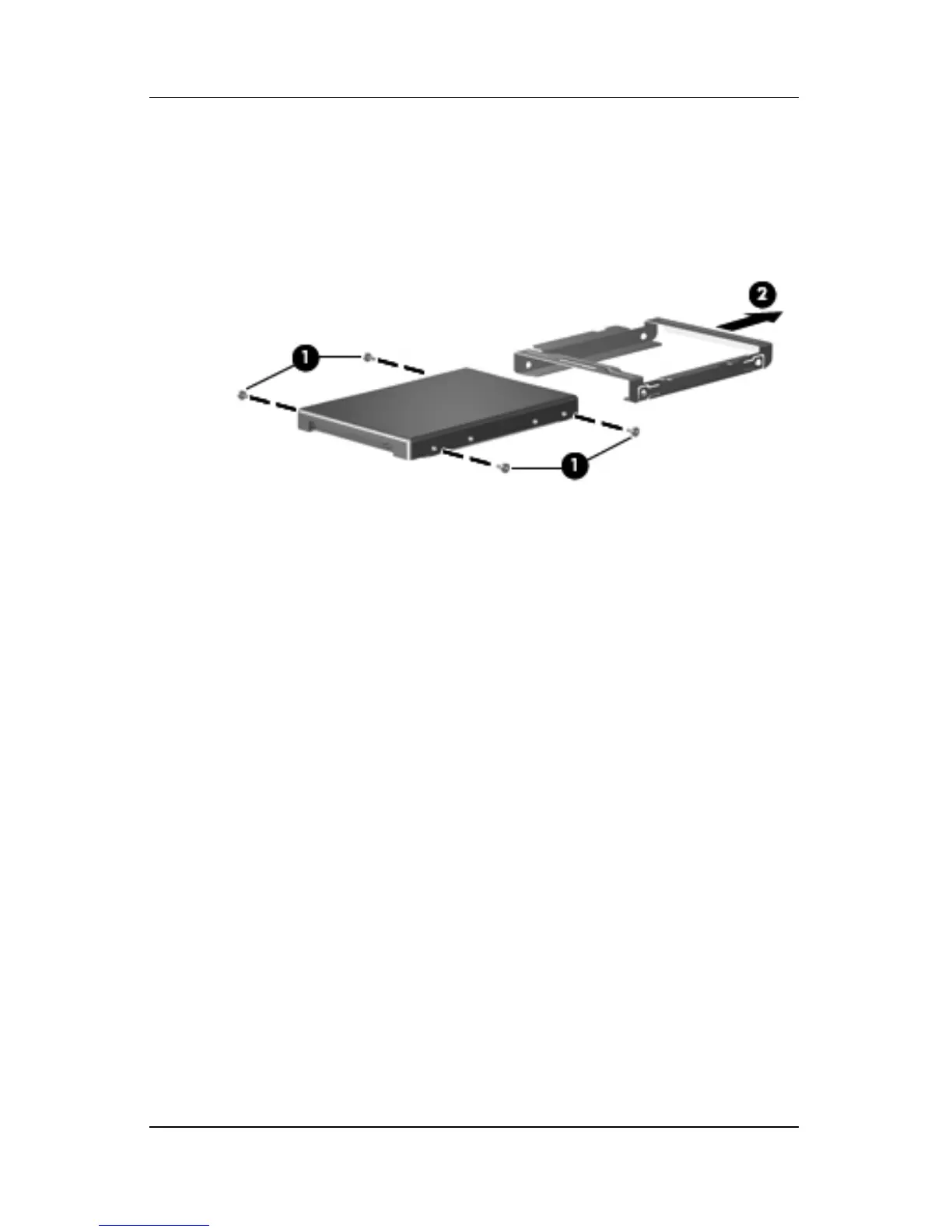

Removing the Hard Drive Bracket
Reverse the above procedure to reassemble and install the
hard drive.
