Removal and Replacement Procedures
Maintenance and Service Guide 5–25

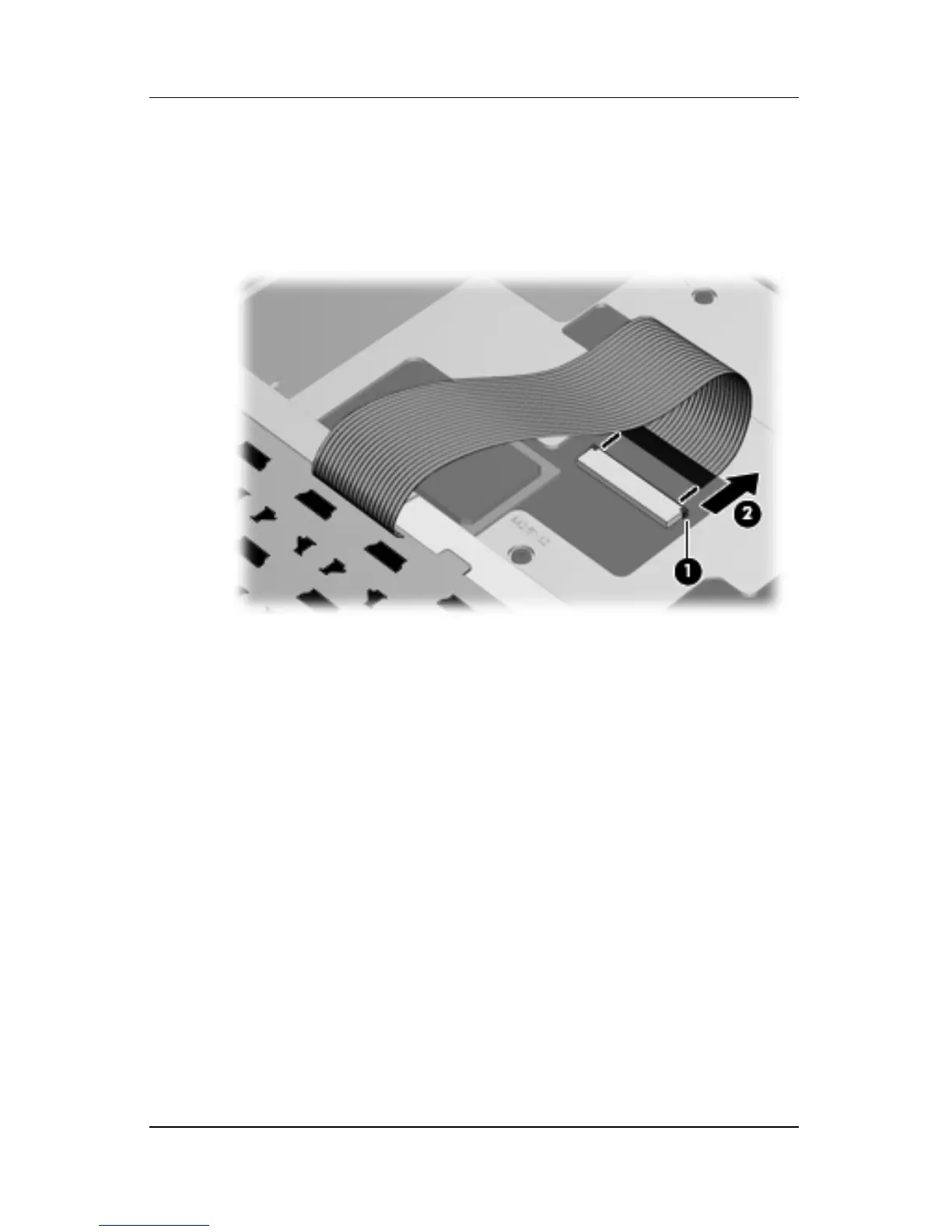

5. Release the zero insertion force (ZIF) connector to which
the keyboard cable 1 is attached and disconnect the
keyboard cable 2.
Removing the Keyboard
6. Remove the keyboard assembly.
Reverse the above procedure to install the keyboard.
