5–50 Maintenance and Service Guide
Removal and Replacement Procedures

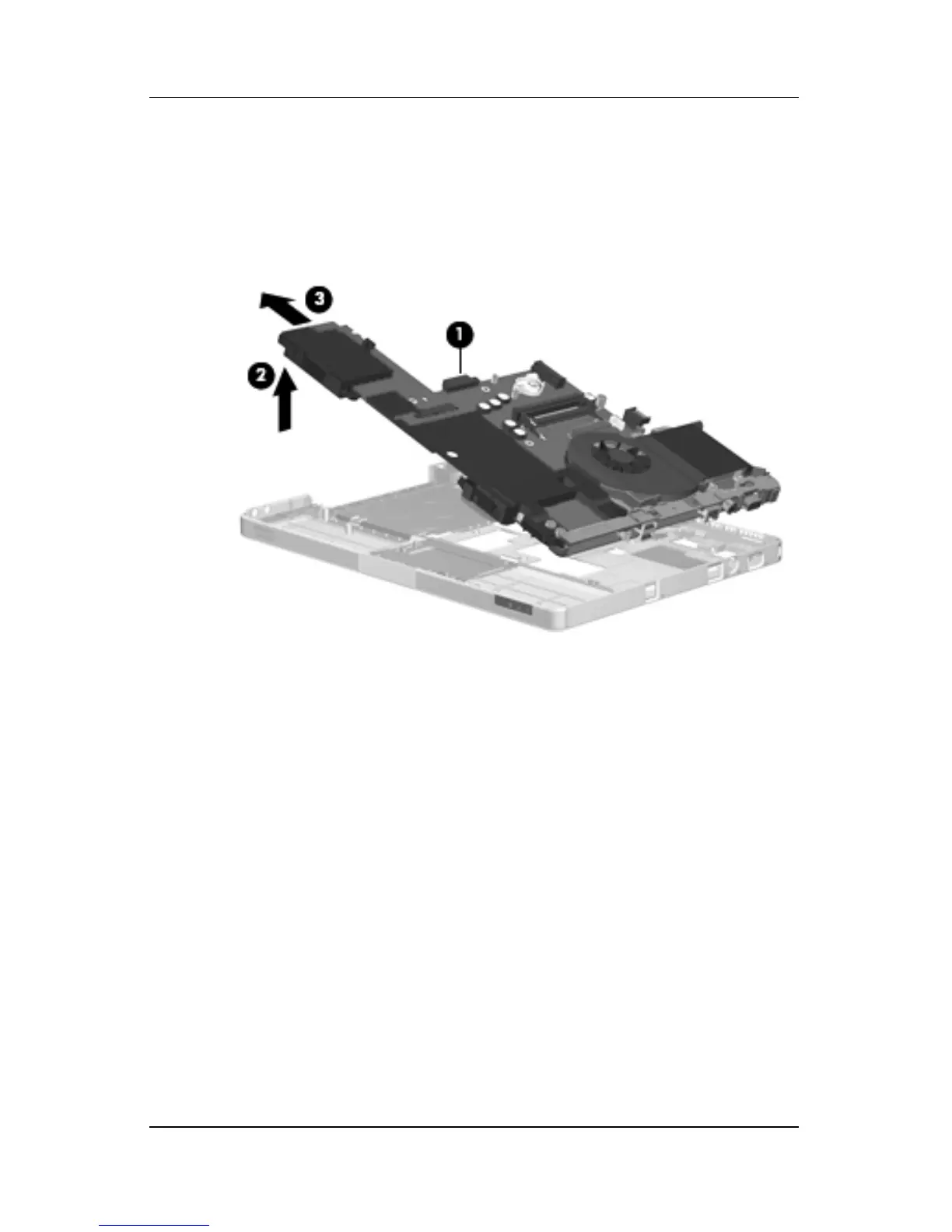

12. Use the optical drive connector 1 to lift the left side of the
system board 2 until it clears the top cover.
13. Slide the system board 3 to the left at an angle and remove it.
Removing the System Board
