5–58 Maintenance and Service Guide
Removal and Replacement Procedures

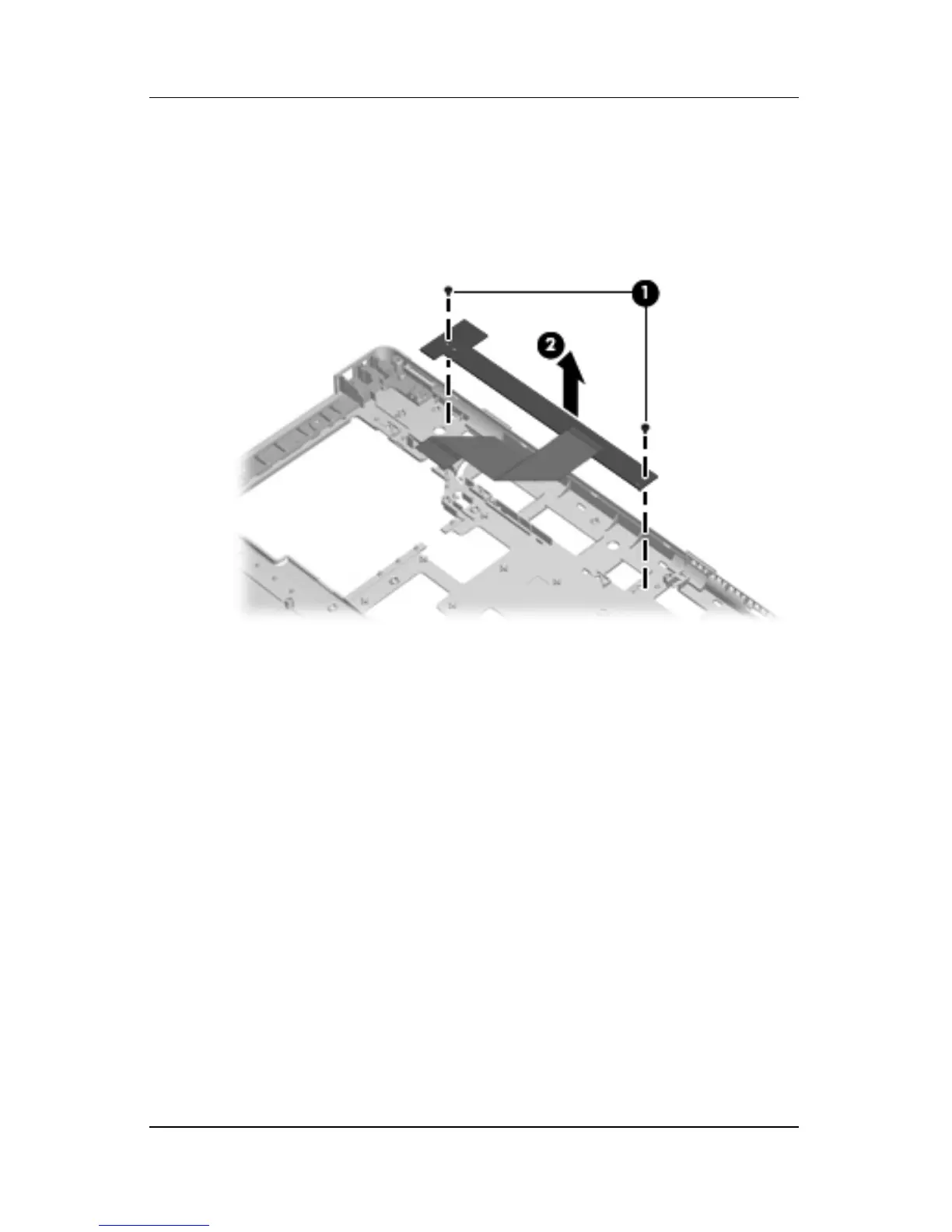

2. Remove the two Phillips PM2.5×5.0 screws 1 that secure
the LED board to the top cover.
3. Remove the LED board and cable 2.
Removing the LED Board
Reverse the above procedure to install the LED board.
