5–60 Maintenance and Service Guide
Removal and Replacement Procedures
2. Turn the system board right side up with the USB ports
toward you.
3. Remove the Phillips PM2.0×4.0 screw that secures the
fan/heat sink assembly to the system board.

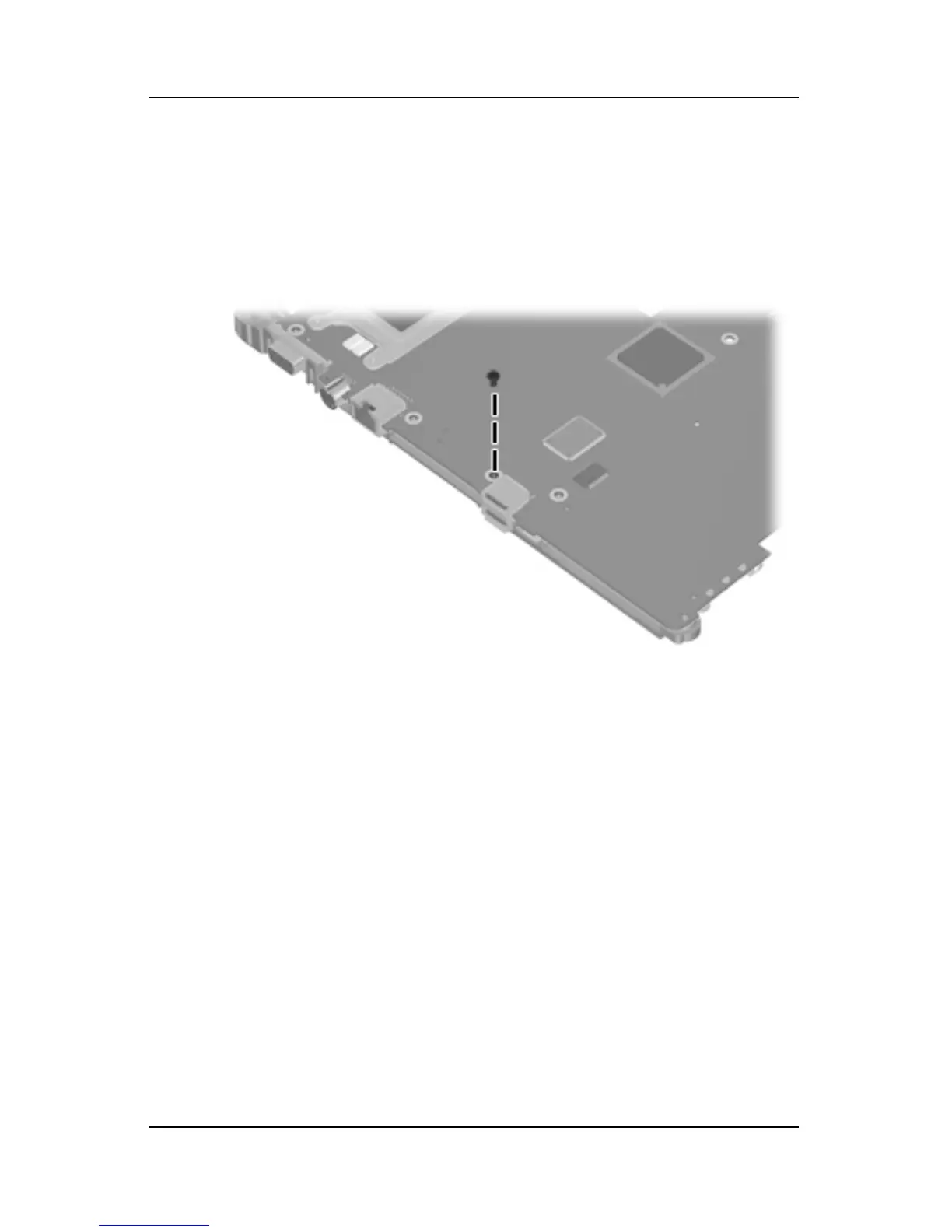

Removing the Fan/Heat Sink Assembly Screws, Part 1
