5ā66 Maintenance and Service Guide
Removal and Replacement Procedures

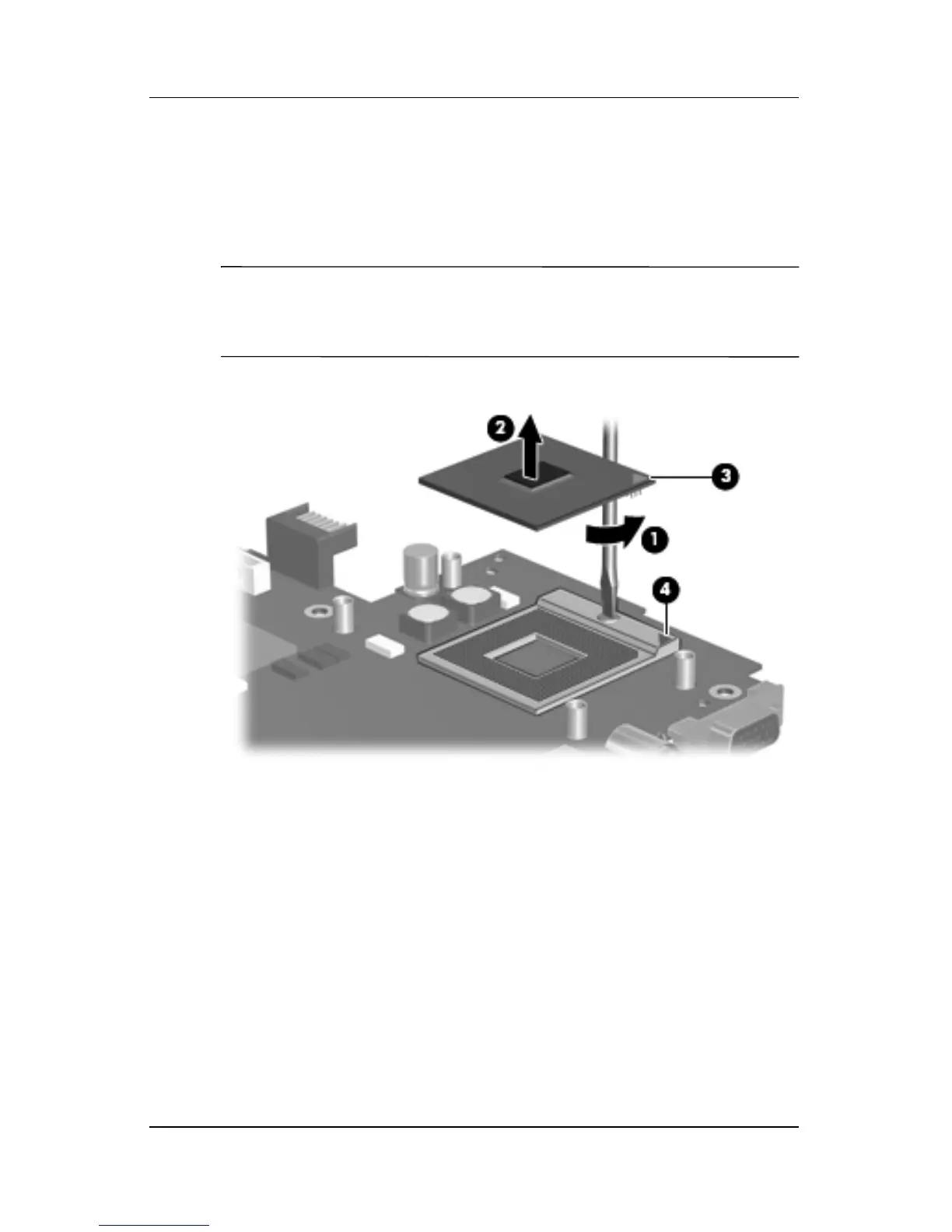

2. Use a flat-bladed screwdriver to turn the processor locking
screw 1 one-half turn counterclockwise until you hear
aclick.
3. Lift the processor straight up and remove it 2.
ā
The gold triangle 3 on the processor should be aligned with
the triangle icon 4 in the front right corner when you install
the processor.
Removing the Processor
Reverse the above procedure to install the processor.
