A–2 Maintenance and Service Guide
Screw Listing

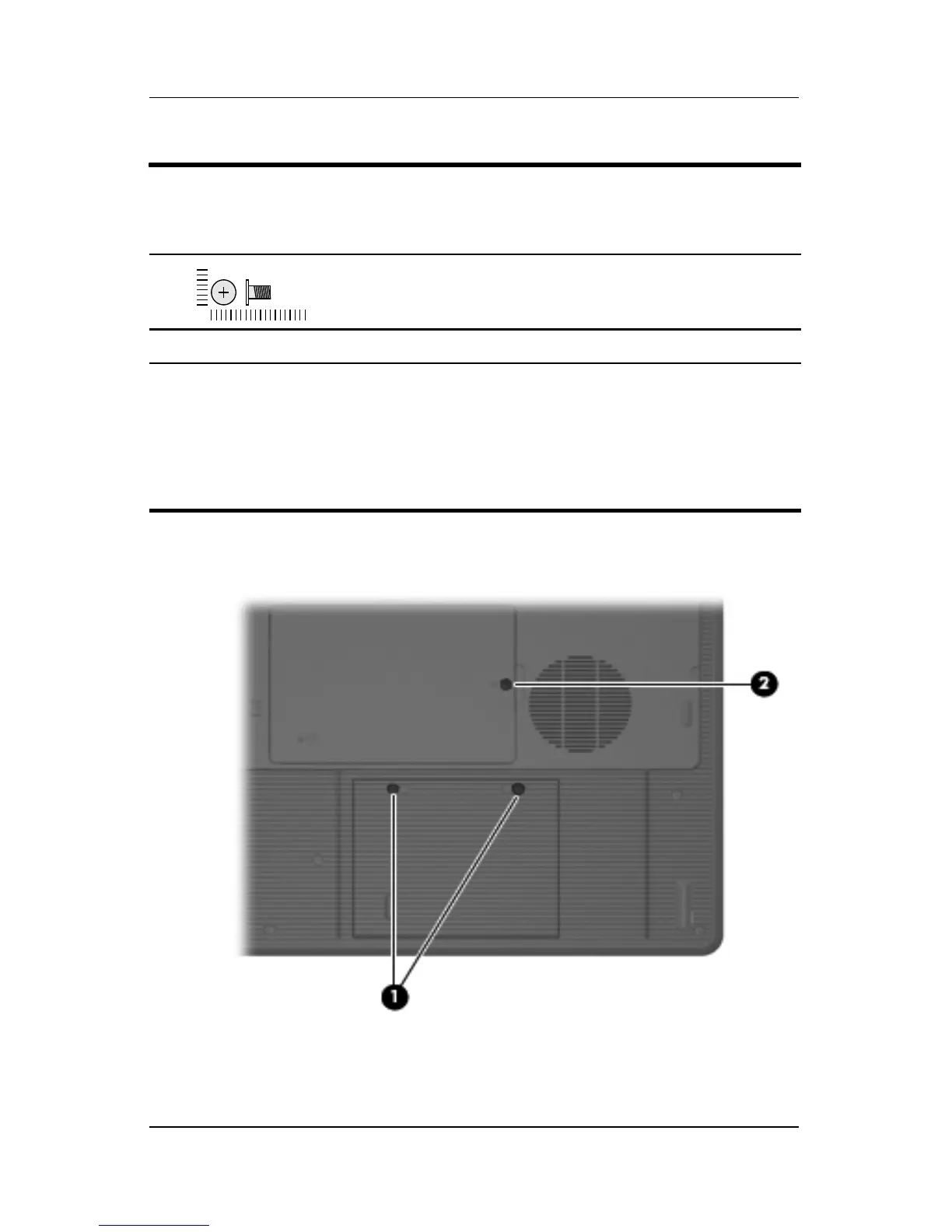

Phillips PM2.5×5.0 Captive Screw Locations
Table A-1
Phillips PM2.5×5.0 Captive Screw
Color Qty. Length Thread
Head
Width
Black 3 5.0 mm 2.5 mm 5.0 mm
Where used:
1 Two Mini Card screws that secure the hard drive cover to the computer
(screws are captured on the cover by C clips; documented in Section 5.4)
2 One screw that secures the memory/Mini Card module compartment cover
to the computer (screw is captured on the cover by a C clip; documented in
Section 5.6)
