Hard drive
●
Optical disc drive

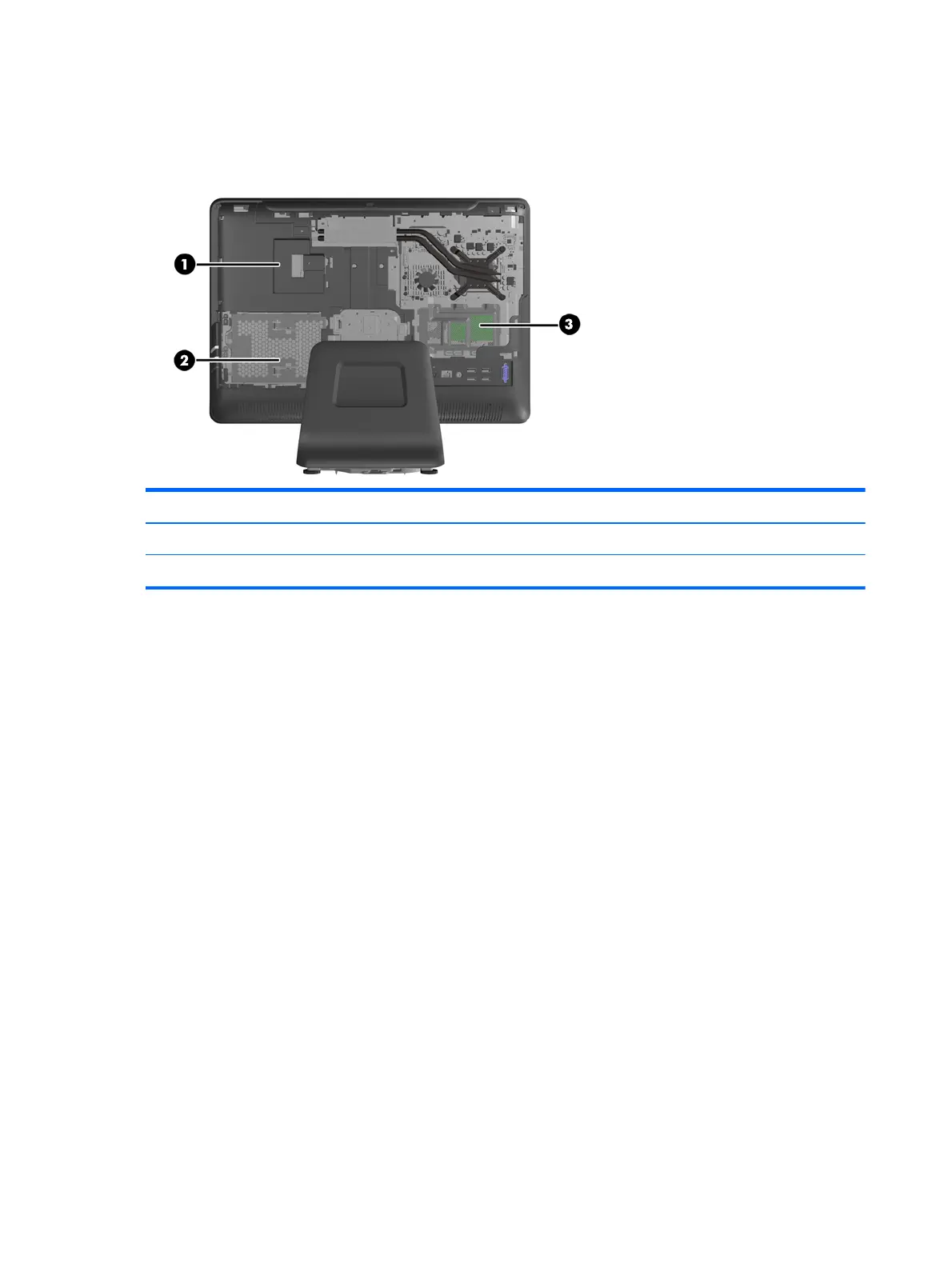

Figure 2-2 Locating Internal Components
Component Component
1 Optical disk drive 3 Memory and battery compartment
2 Hard drive
Removing and Installing Memory
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3-
SDRAM) small outline dual inline memory modules (SODIMMs).
The memory sockets on the system board can be populated with up to two industry-standard
SODIMMs. These memory sockets are populated with at least one preinstalled SODIMM. To achieve
the maximum memory support, you can populate the system board with up to 16 GB of memory.
For proper system operation, the SODIMMs must be:
●
industry-standard 204-pin
●
unbuffered non-ECC PC3-10600 DDR3-1600 MHz-compliant
●
1.5 volt DDR3-SDRAM SODIMMs
The DDR3-SDRAM SODIMMs must also:
●
support CAS latency 9 DDR3 1600 MHz (9-9-9 timing)
●
contain the mandatory Joint Electronic Device Engineering Council (JEDEC) specification
8 Chapter 2 Hardware Repair and Upgrade
