10. To remove a memory module, press outward on the two latches on each side of the SODIMM (1),
then pull the SODIMM out of the socket (2).

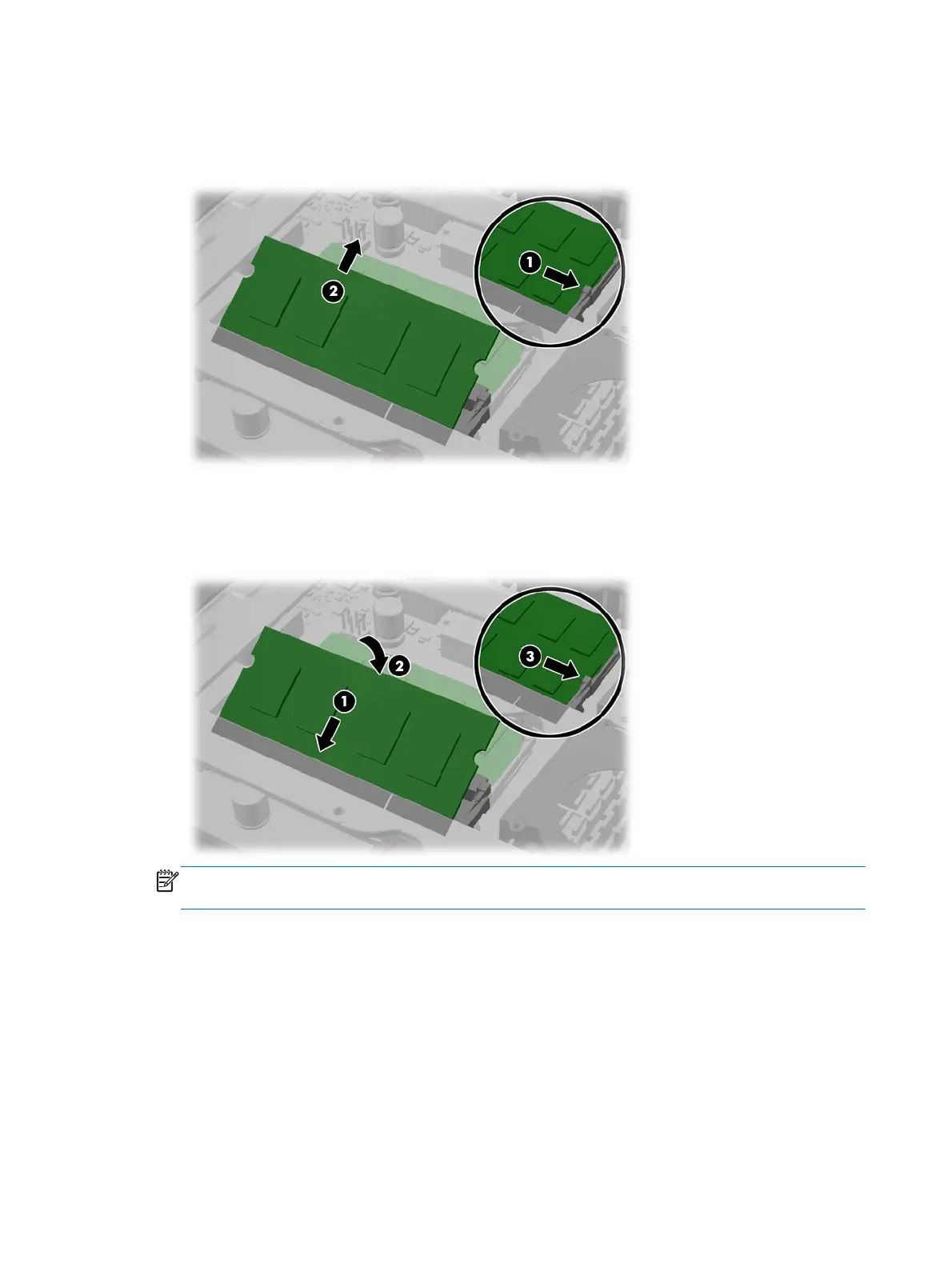

Figure 2-7 Removing a Memory Module
11. To install a memory module, slide the SODIMM into the socket at approximately a 30° angle (1),
then press the SODIMM down (2) so that the latches lock it in place (3).
Figure 2-8 Installing a Memory Module
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket.
12 Chapter 2 Hardware Repair and Upgrade
