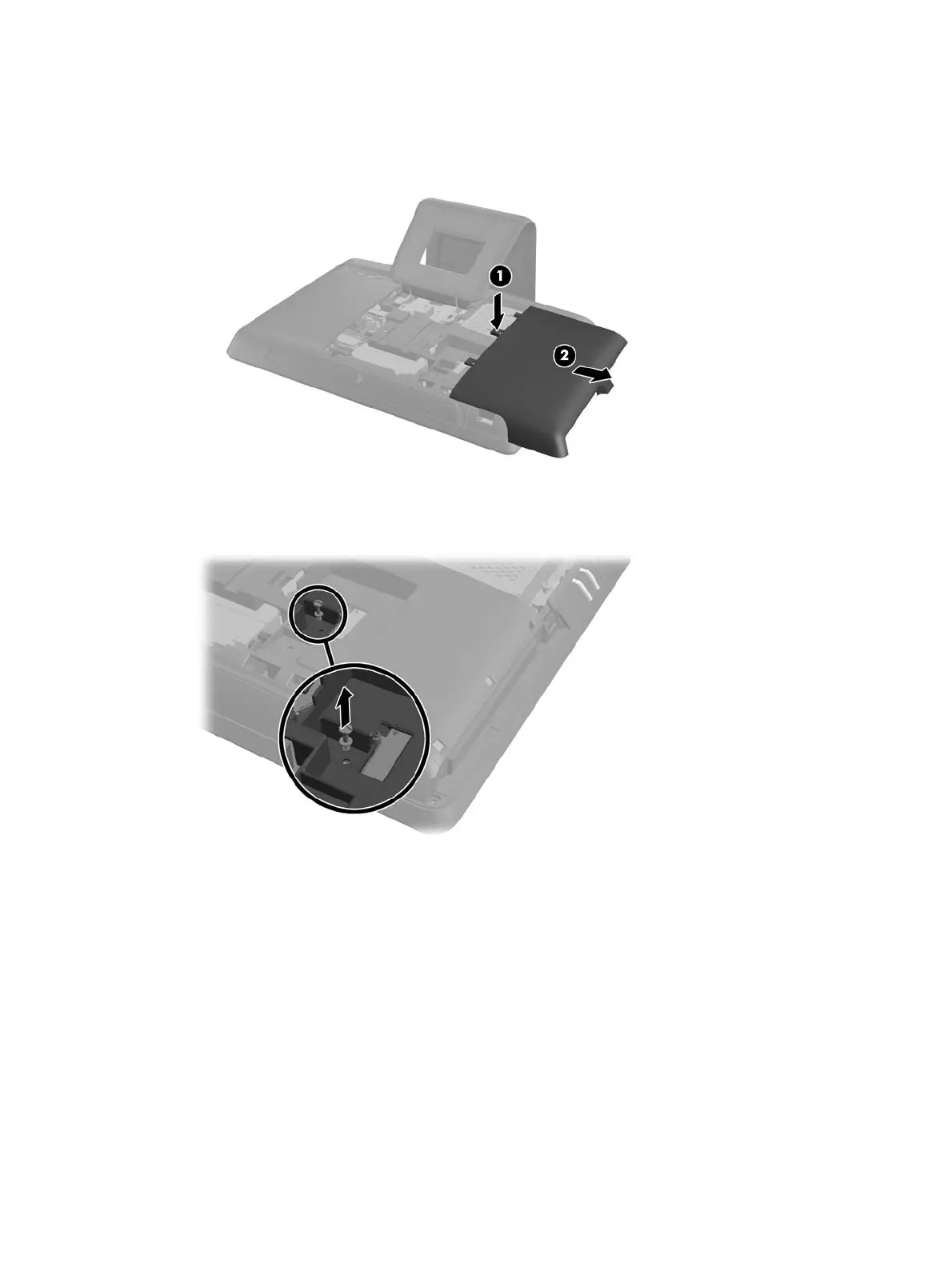

8. To remove the drive access panel, push downward on the tab on the inside edge of the panel (1)
and slide the panel off the computer (2).
Figure 2-37 Removing the Drive Access Panel
9. Remove the screw through the tab on the end of the drive that secures the drive to the computer.
Figure 2-38 Removing the Optical Disc Drive Security Screw
Replacing the Optical Disc Drive
29
