HP Compaq Pro 6305 Illustrated Parts & Service Map

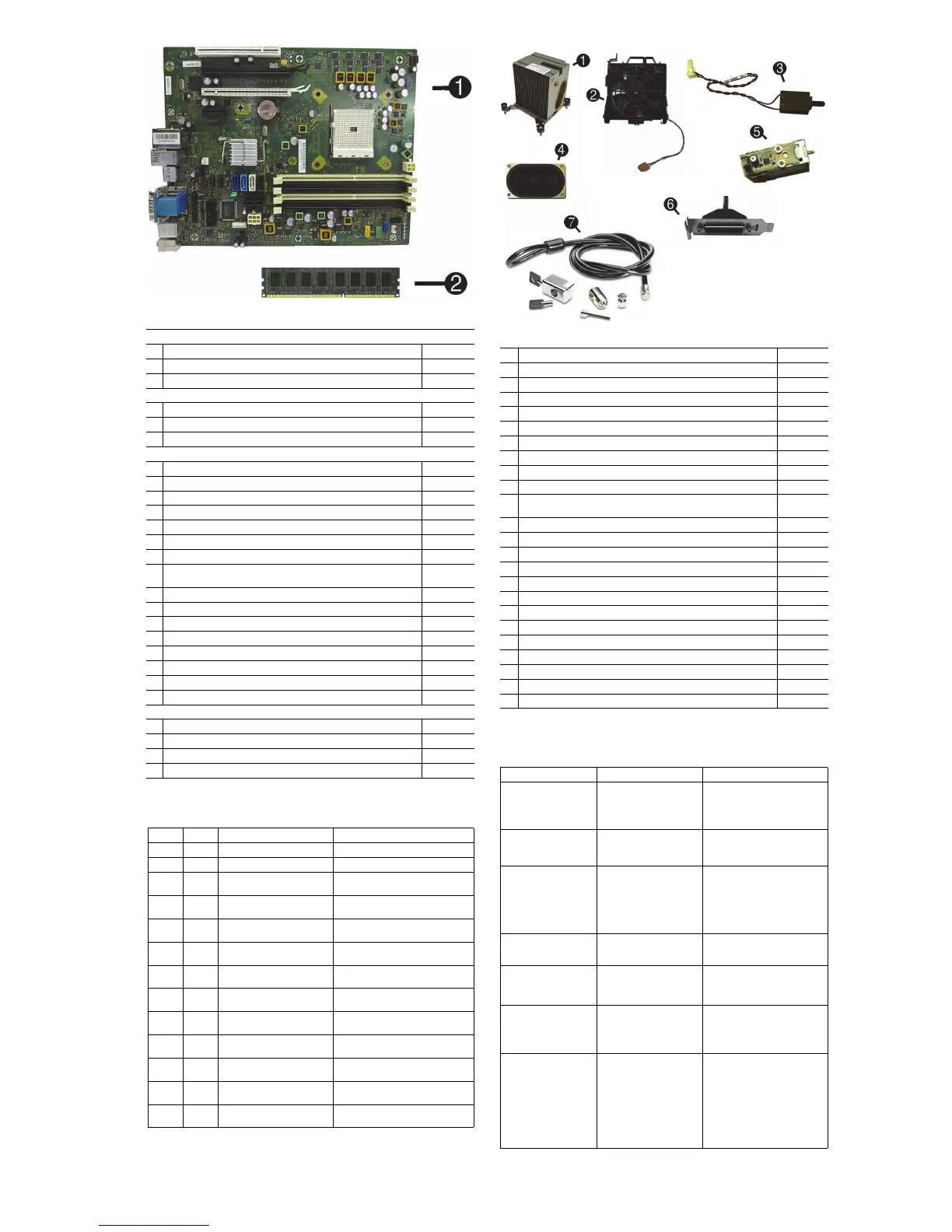

HP Compaq Pro 6305, MT 706895-003 page 2
Standard and Optional Boards
System boards (include replacement thermal material)
1 For use in Windows 7 models 703596-001
* For use in Windows 8 Standard models 703596-501
* For use in Windows 8 Professional models 703596-601
Memory modules (PC3-12800, CL11)
*8-GB
689375-001
*4-GB
671613-001
22-GB
671612-001
Other boards
*
GeForce GT630 PCIe x16 graphics card, 2 GB (for use only with Windows 8) 702084-001
*
nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB (for use only with Windows 8) 707252-001
*
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use only with Windows 8) 700578-001
*
nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB (for use with Windows 8) 720837-001
*
AMD Radeon HD8490 PCIe x16 graphics card, 1 GB (for use with Windows 8) 717219-001
*
AMD Radeon HD8470 PCIe x16 graphics card, 2 GB (for use with Windows 8) 729085-001
*
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China) 702646-001
*
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; not for use
with Windows 8)
682411-001
*
AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only with Windows 8) 702647-001
*
AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8) 637995-001
*
AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use only with Windows 8) 697246-001
* HP WLAN 802.11 g/n 1x2 PCIe NIC 538048-001
* Intel PRO/1000, single port, GbE, NIC 728562-001
* Intel Centrino Advanced-N 6205, 802.11a/b/g/n WLAN module 695915-001
* HP USB 3.0 SuperSpeed PCIe x1 card 663213-001
*
HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001) 663214-001
AMD processors (include thermal material)
* A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D 703598-001
* A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D 703601-001
* A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D 703600-001
* A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D 703599-001
* Not shown
Diagnostic LEDs
LED Color LED Activity State/Message
Power Green On Computer on
Power Green 1 blink every 2 seconds Normal Suspend Mode
Power Red 1 blink every second followed
by a 2 second pause
CPU thermal shutdown
Power Red 3 blinks, 1 blink every second
followed by a 2 second pause
Processor not installed
Power Red 4 blinks, 1 blink every second
followed by a 2 second pause
Power failure (power supply overload)
Power Red 5 blinks, 1 blink every second
followed by a 2 second pause
Pre-video memory error
Power Red 6 blinks, 1 blink every second
followed by a 2 second pause
Pre-video graphics error
Power Red 7 blinks, 1 blink every second
followed by a 2 second pause
System board failure (ROM
Power Red 8 blinks, 1 blink every second
followed by a 2 second pause
Invalid ROM based on Checksum
Power Red 9 blinks, 1 blink every second
followed by a 2 second pause
System powers on but is unable to boot
Power Red 10 blinks, 1 blink every second
followed by a 2 second pause
Bad option card
Power Red 11 blinks, 1 blink every second
followed by a 2 second pause
Current processor does not support a
feature previously enabled.
none none System does not power on and
LEDs are not flashing
System unable to power on
Miscellaneous Parts
1 Heat sink 645326-001
2 Chassis fan with guard 585884-001
3 Hood sensor 638816-001
4 Speaker 645330-001
5 Solenoid lock 641498-001
6 Printer port, PCI card 638817-001
7 Clamp lock, includes universal cable (plate not included) 508987-001
* Rear chassis fan 643908-001
* Fan duct assembly 646824-001
* Serial port, PCI card 638815-001
* Card reader, 22-in-1, 3.5 inch 636166-001
698877-001
* Card reader, 14-in-1, USB 2.0/3.0, 3.5-inch 716390-001
* USB powered speakers 636917-001
* Mouse, PS2, optical, jack black (non-ECO) 609250-001
* Mouse, washable 619580-001
* Mouse, wireless 674317-001
* Mouse, wireless (not for use in APJ region) 608150-001
* Mouse, USB, optical, jack black (non-ECO) 537749-001
* Mouse, USB, laser (non-ECO) 570580-001
* eSATA port assembly, PCI card 645558-001
* HP Business Digital Headset 642738-001
* External USB Webcam 609252-001
* Foot 336445-001
* Antenna kit, for use with WLAN card 583345-001
*Not shown
Common POST Error Messages
Screen Message Probable Cause Recommended Action
101-Option ROM Error 1. System ROM checksum
error.
2. Expansion board option
ROM checksum
1. Verify ROM, reflash if required
2. Remove suspected card, reboot
3. Clear CMOS memory, reboot
4. Replace system board
103-System Board
Failure
DMA, timers 1. Clear CMOS memory.
2. Remove expansion boards.
3. Replace system board.
164-Memory Size Error
and
201-Memory Error
Incorrect memory configu-
ration
1. Run Setup (F10).
2. Check DIMMs for proper
seating, type, compatibility.
3. Remove DIMMs singularly and
reboot to isolate faulty DIMM.
4. Replace system board.
214-DIMM Configura-
tion Warning
Populated DIMM configura-
tion is not optimized
Rearrange the DIMMs so that
each channel has the same amount
of memory.
301-, 304-Keyboard error Keyboard failure. Check kybd connection or keys.
Check connector for bent or miss-
ing pins. Replace kybd. If 304,
possible system board problem.
501-Display Adapter
Failure
Graphics display controller. 1. Reseat graphics card.
2. Clear CMOS.
3. Check monitor connection.
4. Replace graphics card.
1720-SMART Hard Drive
Detects Imminent Failure
Hard drive is about to fail.
1. Determine if hard drive is giving
correct error message. Enter
Computer Setup and run the
Drive Protection System test
under
Storage > DPS Self-test .
2. Apply hard drive firmware
patch if applicable.
3. Back up contents and replace
hard drive.

HP Compaq Pro 6305 Specifications

General

Processor cache	1 MB
Processor cores	2
Processor model	A6-6400B
Processor family	AMD A6
Processor socket	Socket FM2
Processor frequency	3.9 GHz
Processor cache type	L2
Processor manufacturer	AMD
Processor boost frequency	4.1 GHz
Number of processors installed	1
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	-
Total storage capacity	500 GB
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 8470D
On-board graphics card family	AMD Radeon HD 8000
Recovery operating system	Windows 8 Pro
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI ports quantity	0
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Chassis type	Micro Tower
Product color	Black
Country of origin	China
Product type	PC
Motherboard chipset	AMD A75
Power supply	320 W
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	431 mm
Width	177 mm
Height	377 mm
Weight	9300 g
