HP Compaq Pro 6305, MT 706895-003 page 4
System Board

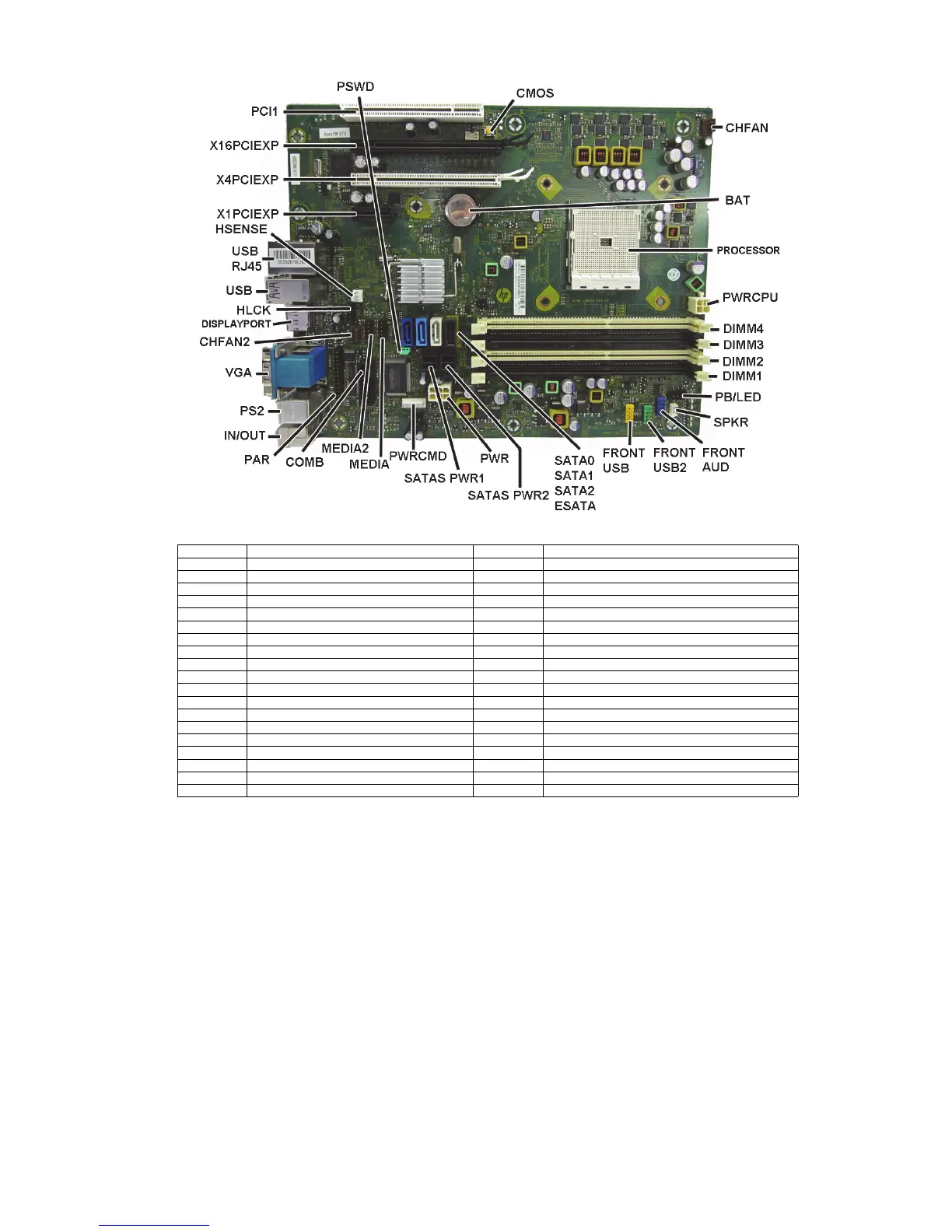

System Board Connectors and Jumpers (component location may vary)
PSWD Password header PWR Main power connector
CMOS CMOS header SATA SPWR1 Hard drive power connector
CHFAN Fan connector PWR CMD Power connector
BAT RTC battery socket MEDIA USB Device (Media card reader)
PROCESSOR Processor socket MEDIA2 USB Device (Media card reader)
PWRCPU CPU power connector COMB Serial port
DIMM4 Memory socket - Channel A PAR Parallel port connector
DIMM3 Memory socket - Channel A IN/OUT Audio in/Audio out
DIMM2 Memory socket - Channel B PS2 PS/2 keyboard + mouse connector
DIMM1 Memory socket - Channel B VGA Monitor connector+serial port
PB/LED Power switch connector CHFAN2 System fan connector
SPKR Speaker connector DISPLAYPORT DisplayPort connector
FRNT AUD Front panel connector HLCK Hood lock connector
FRONT USB2 2nd USB connector USB USB connectors
FRONT USB 1st USB connector USB RJ45 Network+USB connectors
SATA0 1st hard drive (SATA3.0) HSENSE Hood sensor connector
SATA1 2nd hard drive, or 2nd ODD if ESATA Adapter Cable exists (SATA 2.0) X1PCIEXP PCIe X1 slot
SATA2 1st optical drive (SATA 2.0) X4PCIEXP2 PCIe X16 slot
ESATA eSATA connector or 2nd ODD X16PCIEXP PCIe X16 slot
SATAS PWR2 Optical drive power connector PCI1 PCI slot
