6–36 Maintenance and Service Guide
Removal and Replacement Procedures

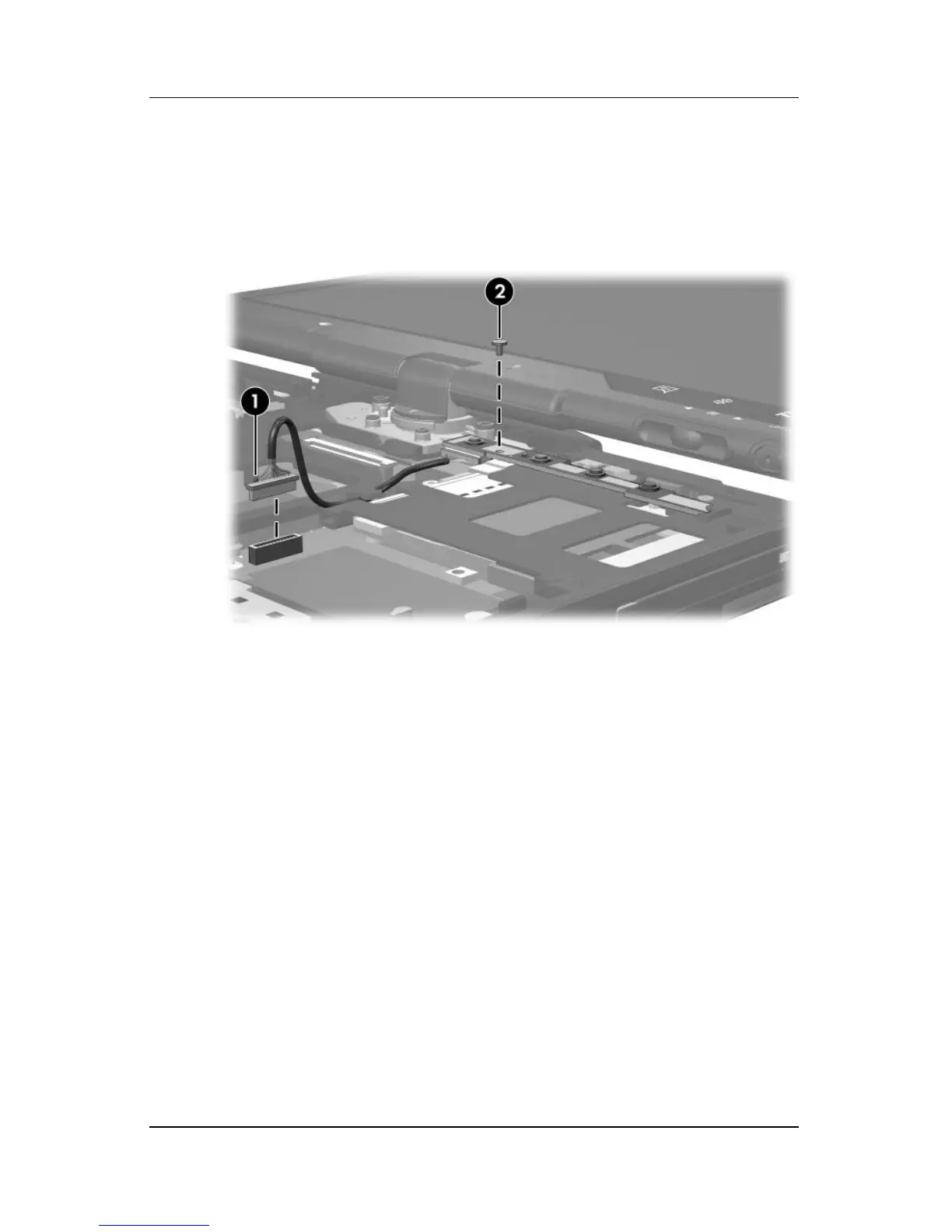

4. Disconnect the button board cable 1 from the system board.
5. Remove the silver PM2.0×4.0 screw 2 that secures the
button board to the switch cover.
Removing the Button Board Screw
